Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Certification: ce
Model Number: OEMQS100-01
Payment & Shipping Terms
Price: $75.00/sets >=1 sets
Packaging Details: peristaltic pump
carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.03 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
OEM Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
3mm |
Voltage: |
24v |
Power: |
30w |
Name: |

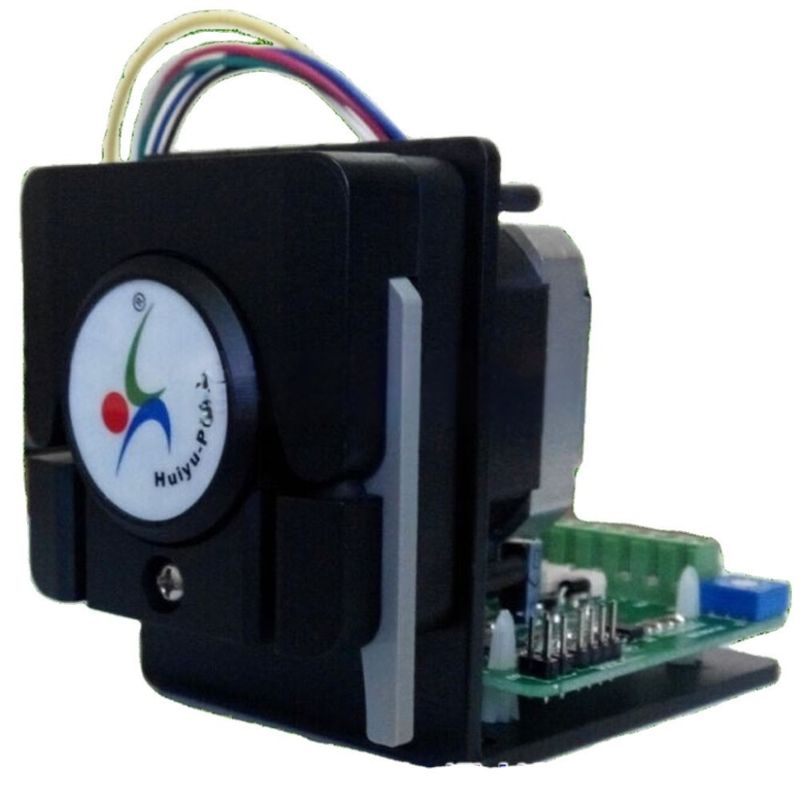

OEM Stepper Motor Peristaltic Pump |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
0.2-41mL/min |
Motor Speed: |
0-100rpm |
Rollers: |
POM |
Suitable Tubing Type: |
Wall Thickness0.8-1mm ID≤3.17mm |
Weight: |
0.5Kg |
Power Supply: |
24v Dc |
Port: |
Beijing, Tianjin ,Hongkong |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.03 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
OEM Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
3mm |
Voltage: |
24v |
Power: |
30w |
Name: |
OEM Stepper Motor Peristaltic Pump |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
0.2-41mL/min |
Motor Speed: |
0-100rpm |
Rollers: |
POM |
Suitable Tubing Type: |
Wall Thickness0.8-1mm ID≤3.17mm |
Weight: |
0.5Kg |
Power Supply: |
24v Dc |
Port: |
Beijing, Tianjin ,Hongkong |
- Flow range:0006-41ml/min
- Speed: ≤100rpm
- Speed resolution: 0.1rpm
- Max. flow rate: 41mL/min
- Tubing: ID≤3.17mm wall thickness 0.8mm-1.0mm
- *Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- *BCD dial switch speed control: 15 kind of speeds are available for internal control, and "0" position is for external control.
- *External speed control (optional):
4-20mA corresponding to 0-100rpm
0-5V corresponding to 0-100rpm
0-10V corresponding to 0-100rpm
0-10kHz corresponding to 0-100rpm
- Dimension (LxWxH): 107mmx60mmx80mm
- Relative humidity: <80%
- Operating temperature: 0 to 40°C
- Power supply: DC11.4V-25.2V/10W
