Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: TH15
Payment & Shipping Terms
Price: $85.00 - $125.00/sets
Packaging Details: detergent dosing pump
carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v |
Name: |
Detergent Dosing Peristaltic Pump |
Housing Material: |
PPS And PC |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
183ml/min |
Motor Speed: |
0-100rpm |
Rollers: |
POM |
Suitable Tubing Type: |
25#,17# |
External Control Signal: |
0-5v,4-20mA,0-10kHz |
Dimension: |
130x73x82mm |
Weight: |
0.5Kg |
Port: |
Beijing, Tianjin ,Hongkong |
Warranty: |
1 |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v |
Name: |
Detergent Dosing Peristaltic Pump |
Housing Material: |
PPS And PC |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
183ml/min |
Motor Speed: |
0-100rpm |
Rollers: |
POM |
Suitable Tubing Type: |
25#,17# |
External Control Signal: |
0-5v,4-20mA,0-10kHz |
Dimension: |
130x73x82mm |
Weight: |
0.5Kg |
Port: |
Beijing, Tianjin ,Hongkong |

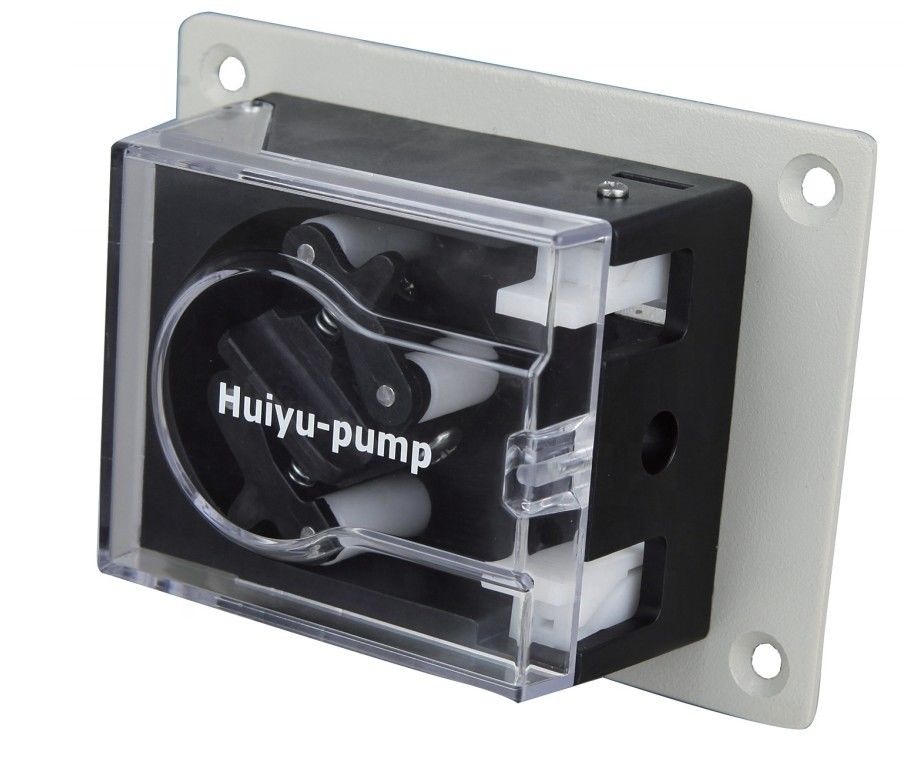

detergent dosing pump
Introduction
It has AC motor drive, safety capacitor start, pump head with spring; simple structure, self-adaption the tubing; supply fixed speed and stable flow rate
Technical paremeter
Power: 220V AC/55mA,50/60Hz or 110V AC/110mA,50/60Hz
Fixed speed control: 15 kind of speeds are available for internal control, 2.5,3.8,5,7.5,10,12,15,20,25,30,40,50,60,80,110rpm
Speed error: ±10%
Operating direction: CW
Start capacitor: safety capacitor
Power: 14W
Maximum noise: 45dB
Life: 1500 hours
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Installation: panels installation
Max flow rate: 183ml/min
Max pressure: 0.18MPa
