Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Certification: RoHS
Model Number: OEMMA60
Payment & Shipping Terms
Price: $40.00 - $80.00/sets
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
OEM Peristaltic Pump |
Power: |
Electric |
Theory: |
Reciprocating Pump |
Name: |
Gear Motor DC24V DC12V Peristaltic Pump |
Housing Material: |
PPS And PC |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
100ml/min |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
OEM Peristaltic Pump |
Power: |
Electric |
Theory: |
Reciprocating Pump |
Name: |
Gear Motor DC24V DC12V Peristaltic Pump |
Housing Material: |
PPS And PC |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
100ml/min |

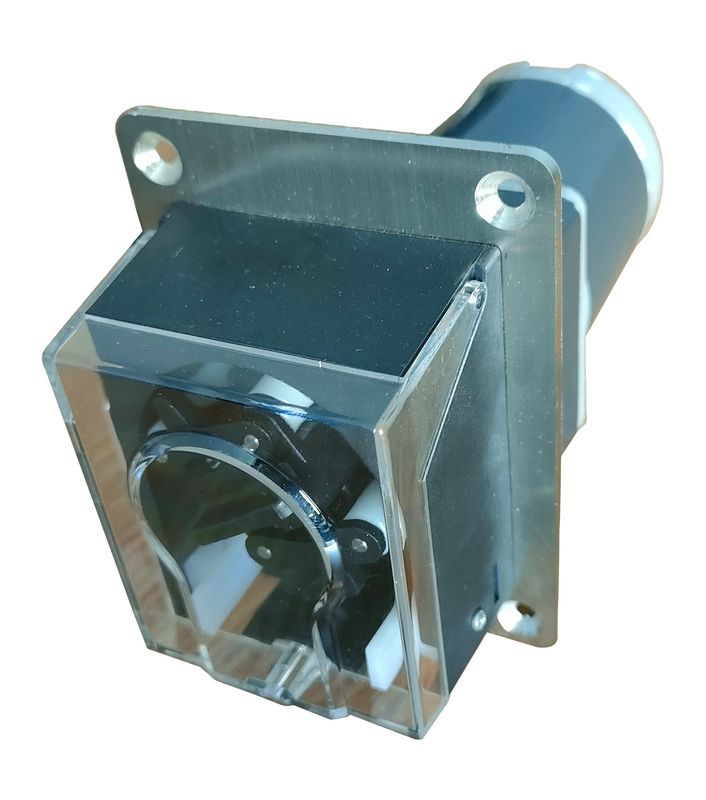

Introduction
It has DC gear motor drive, safety capacitor start, pump head with spring; simple structure, self-adaption the tubing; supply fixed speed and stable flow rate
Technical paremeter
Power: DC12V OR DC24V
Fixed speed control: 15 kind of speeds are available for internal control,
Speed error: ±10%
Operating direction: CW
Start capacitor: safety capacitor
Power: 14W
Maximum noise: 45dB
Life: 1500 hours
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Installation: panels installation
Max flow rate: 100ml/min
Max pressure: 0.18MPa
