Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Certification: CE
Model Number: OEM pump
Payment & Shipping Terms
Price: $120.00/sets >=1 sets
Packaging Details: peristaltic pump
carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.02 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
OEM Peristaltic Pump |
Cable Length: |
1m |
Outlet Size: |
6.4mm |
Voltage: |
220v 24v 12v |
Power: |
30w |
Name: |
OEM Peristaltic Pump |
Housing Material: |
PC |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
1140ml/min |
Motor Speed: |
0-300rpm |
Rollers: |
304 Stainless Steel |
Suitable Tubing Type: |
13#, 14#, 19#, 16#, 25#, 17#, 18#,15#,24# |
Dimension: |
183x102x136 (mm) |
Power Supply: |
220V AC,50/60Hz |
Port: |
Beijing, Tianjin ,Hongkong |
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.02 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
OEM Peristaltic Pump |
Cable Length: |
1m |
Outlet Size: |
6.4mm |
Voltage: |
220v 24v 12v |
Power: |
30w |
Name: |
OEM Peristaltic Pump |
Housing Material: |
PC |
Chemical Compatibility: |
Acid ,Alkali ,organic Solvent |
Max Flow Rate: |
1140ml/min |
Motor Speed: |
0-300rpm |
Rollers: |
304 Stainless Steel |
Suitable Tubing Type: |
13#, 14#, 19#, 16#, 25#, 17#, 18#,15#,24# |
Dimension: |
183x102x136 (mm) |
Power Supply: |
220V AC,50/60Hz |
Port: |
Beijing, Tianjin ,Hongkong |

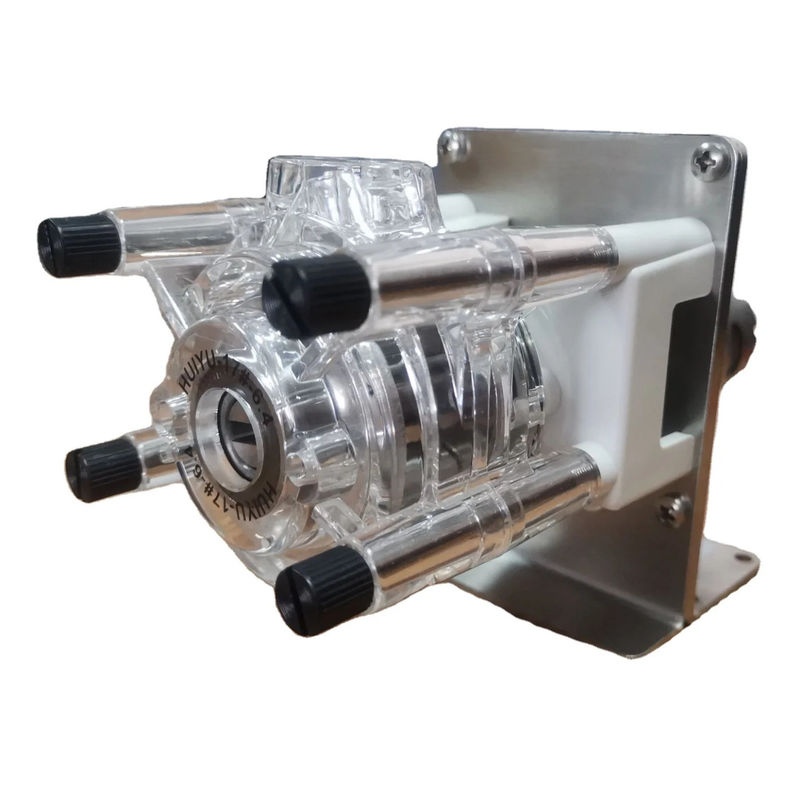

OEM peristaltic pump
Introduction
Adopt step motor, soleplate installation, Stepless speed regulation, External can control the start and stop. It is designed for pharmaceutical filling, food filling and other industry. It works stably and reliably.
Technical parameter
Speed: 0-300 rpm, reversible
Start/stop control: toggle switch
Speed control: rotary encoded switch
External control: just control start/stop
Dimensions (L × W × H): 183×102×136 (mm)
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Power: 220V AC,50/60Hz
Technical Data Sheet
| model | Available tubing | flow rate range (ml/min) |
| YZ15-1A | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness 1.5mm | 1140m1/min |
| YZ25-lA | 15#,24# wall thickness 2.5mm | 810m1/min |
| BZ25-lA | 24# wall thickness 2.5mm | 780m1/min |
