Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: DG-1
Payment & Shipping Terms
Price: $95.00/sets >=1 sets
Packaging Details: Ismatec multichannel cartridge peristaltic pump head
carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 YEAR |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Outlet Size: |
6.4MM |
Voltage: |
24V 12V 110V 220V |
Power: |
30W |
Name: |
Ismatec Multichannel Cartridge Peristaltic Pump Head |
Cartridge Material: |
POM |
Flow Rate Per Channel: |
0.0002-48ml/min |
Motor Speed: |
Max 100rpm |
Rollers: |
304 Stainless Steel |
Suitable Tubing: |
Wall Thickness:0.8-1.0mm ID≤3.17mm |
Port: |
Beijing, Tianjin ,Hongkong |
Warranty: |
1 YEAR |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Outlet Size: |
6.4MM |
Voltage: |
24V 12V 110V 220V |
Power: |
30W |
Name: |
Ismatec Multichannel Cartridge Peristaltic Pump Head |
Cartridge Material: |
POM |
Flow Rate Per Channel: |
0.0002-48ml/min |
Motor Speed: |
Max 100rpm |
Rollers: |
304 Stainless Steel |
Suitable Tubing: |
Wall Thickness:0.8-1.0mm ID≤3.17mm |
Port: |
Beijing, Tianjin ,Hongkong |

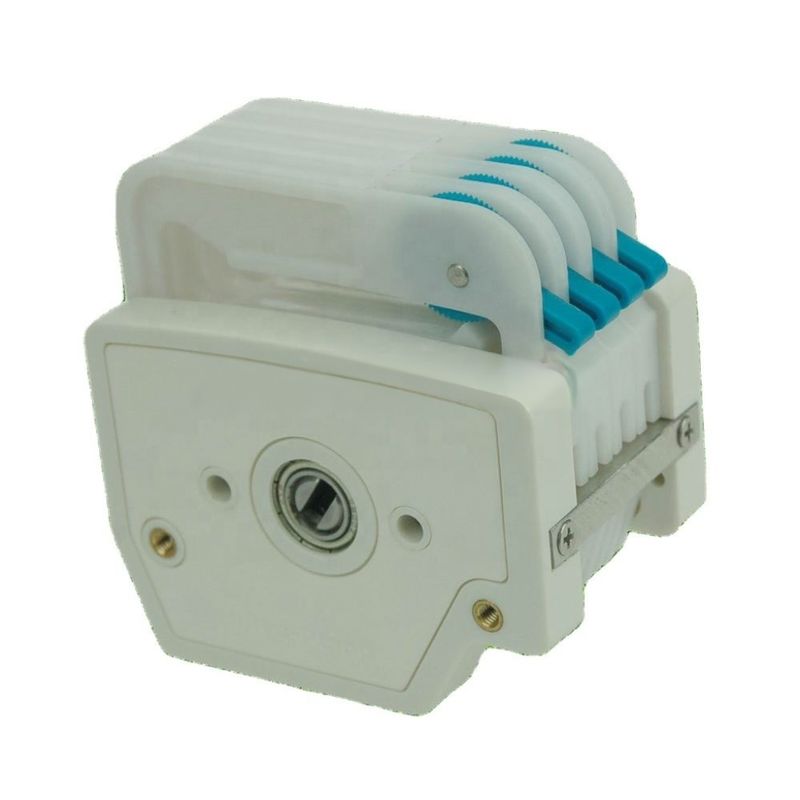

DG series pump heads are designed for micro flow rates, multi-channel fluids transfer and supply high precision. Easy to change and fix the tubing. The trigger and ratchet wheel have been improved to have better function. Users can fix and change tubing easily.
Character:
Occlusion can be adjusted slightly by ratchet wheel to fit different tubing wall thicknesses requirements.
6-rollers pump head supply more flow rate.
10-rollers reduce pulse and flow rates slightly.
Skillful trigger structure, convenient to eject the cartridges (DG-1, DG-2)
Rollers are made from 304 stainless steel, can resistant acid, soda and organic solvent
Cartridges are made from POM or PVDF
Technical Parameters
| Model | Rollers NO. | Available tubing | Max flowrate(ml/min) | Speed range(rpm) | Cartridge material |
| DG-1 | A Refers to 6 rollers B refers to 10 rollers | ID≤3.17mm;wall thickness 0.8-1.0mm | A:48 B:32 | ≤100 | POM PVDF |
| DG-2 | |||||
| DG-4 | |||||
| DG-6 | |||||
| DG-8 | |||||
| DG-10 | |||||
| DG-12 |
