Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Certification: ce
Model Number: JY15
Payment & Shipping Terms
Price: $20.00 - $40.00/pieces
Packaging Details: carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.04 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump Head |
Cable Length: |
0.1m |
Outlet Size: |
4.8mm |
Voltage: |
220v 24v |
Power: |
30w |
Name: |
Electric Power Seko Dosing Pump For Kitchen And Laundry |
Housing Material: |
PPS |
Max Flow Rate: |
248ml/min |
Motor Speed: |
Max 150rpm |
Rollers: |
POM |
Suitable Tubing Type: |
13#14#19#16#25#17# |
Standard Or Nonstandard: |
Standard Or Nonstandard |
Usage: |
Water,oil,reagent,fluid,air |
Fuel: |
Electric |
Port: |
Beijing, Tianjin ,Hongkong |
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.04 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump Head |
Cable Length: |
0.1m |
Outlet Size: |
4.8mm |
Voltage: |
220v 24v |
Power: |
30w |
Name: |
Electric Power Seko Dosing Pump For Kitchen And Laundry |
Housing Material: |
PPS |
Max Flow Rate: |
248ml/min |
Motor Speed: |
Max 150rpm |
Rollers: |
POM |
Suitable Tubing Type: |
13#14#19#16#25#17# |
Standard Or Nonstandard: |
Standard Or Nonstandard |
Usage: |
Water,oil,reagent,fluid,air |
Fuel: |
Electric |
Port: |
Beijing, Tianjin ,Hongkong |
Max flow rate:248ml/min at 150rpm
Features:
low flow high ,accurate cheap pump head
transparent cover to check the working status easily
compact and exiquite , could be mounted on sole plate or panel
mainly used for OEM application
| Model | Suitable tubing | Max flow rate ml/min | Motor speed rpm | Roller material | Housing material | Roller numbers |
| JY15-1A | 13#,14#,19#,16#,25#,17# | 248 | ≤150 | POM | PPS | 2/4 |

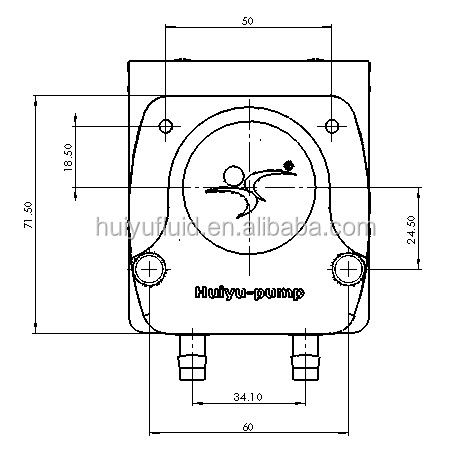

Dimensions
