Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: YZ15
Payment & Shipping Terms
Price: $95.00/sets >=1 sets
Packaging Details: carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1YEAR |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control, Wastewater Treatment, Metering |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5M |
Voltage: |
24V 220V 110V |
Power: |
40W |
Name: |
Easy Load Pump Head |
Housing Material: |
PPS |
Chemical Compatibility: |
Acid ,Alkali And Organic Solvent |
Flow Rate: |
0.07-2200ml/min |
Motor Speed: |
0.1-600rpm |
Rollers: |
304 Stainless Steel |
Suitable Tubing Type: |
13# 14# 19# 16# 25# 17# |
Usage: |
Water,oil,reagent,fluid,air |
Port: |
Beijing, Tianjin ,Hongkong |
Warranty: |
1YEAR |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control, Wastewater Treatment, Metering |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5M |
Voltage: |
24V 220V 110V |
Power: |
40W |
Name: |
Easy Load Pump Head |
Housing Material: |
PPS |
Chemical Compatibility: |
Acid ,Alkali And Organic Solvent |
Flow Rate: |
0.07-2200ml/min |
Motor Speed: |
0.1-600rpm |
Rollers: |
304 Stainless Steel |
Suitable Tubing Type: |
13# 14# 19# 16# 25# 17# |
Usage: |
Water,oil,reagent,fluid,air |
Port: |
Beijing, Tianjin ,Hongkong |

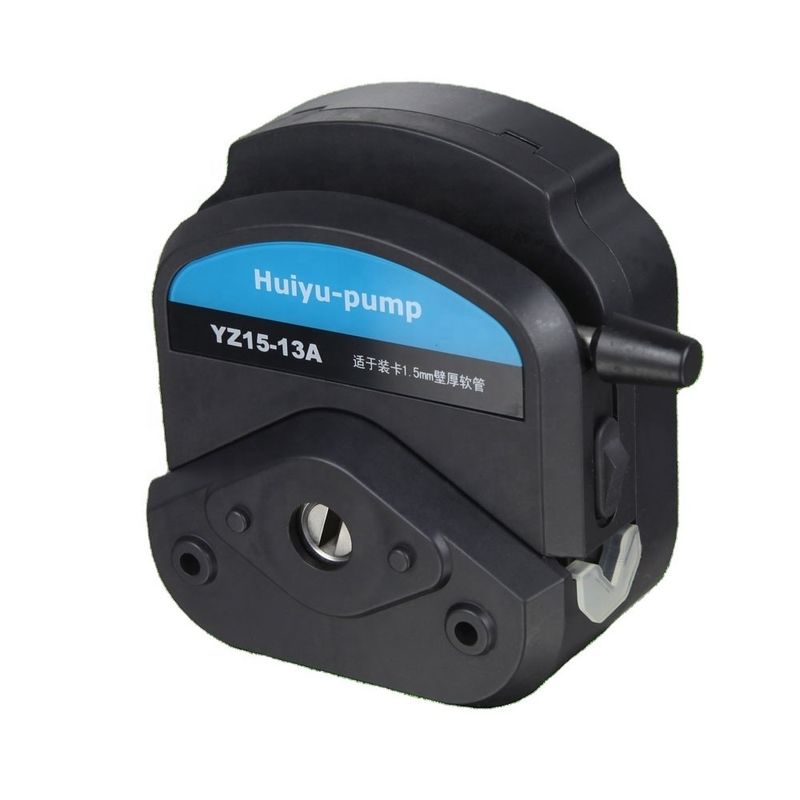

YZ15/ YZ25 series easy load pump head is made of PPS (Polyphenylene sulfide)or PSF( Polysalfone)
max flow rate: 2200ml/min
Model: YZ15/25 series
Classical design
Lab use, stackable pump heads
Character:
Its materials is PSU which has stable performance and high temperature resistance (150 °C )
Resistant acid, soda, but not organic solvent
Inside metal parts are made from 304 stainless steel
Rollers working surface has been widened to reduce the grinding of tubing, and enhanced the life of the tubing
Technical Parameters
| Model | Available tubing | Max flow rate(ml/min) | Speed range(rpm) | Rollers material | casing material | Rollers NO. | weight(kg) |
| YZ15-13A | 13#,14#,19#,16#,25#,17#18# | 2200 | ≤600 | 304 | PSU | 3 | 0.4 |
| YZ25-13A | 15#,24# | 1600 |
