multi-channel DG peristaltic pumps head for perfume machine

Name: multi-channel DG peristaltic pumps head for perfume machine
Brand: Huiyu
SKU: DG PUMP HEAD
Price: 95.00 USD
Availability: InStock
Rating: 4.6 (103 reviews)

Product Details

Place of Origin: Hebei, China

Brand Name: Huiyu

Certification: RoHS

Model Number: DG PUMP HEAD

Payment & Shipping Terms

Price: $95.00/sets >=1 sets

Packaging Details: 1 pump in 1 carton with foam plastic

Supply Ability: 1000 Set/Sets per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1 Year	Customized Support:	OEM
Application:	Food And Beverage Industry	Horsepower:	100rpm
Power Source:	Electric	Pressure:	0.2Mpa
Structure:	Peristaltic Pump	Voltage:	AC176-264V
Type:	DG Pump Head	Max Flow Rate Range:	48ml/min
Roller Number:	6/8	Roller Material:	304

Warranty:	1 Year
Customized Support:	OEM
Application:	Food And Beverage Industry
Horsepower:	100rpm
Power Source:	Electric
Pressure:	0.2Mpa
Structure:	Peristaltic Pump
Voltage:	AC176-264V
Type:	DG Pump Head
Max Flow Rate Range:	48ml/min
Roller Number:	6/8
Roller Material:	304

Description

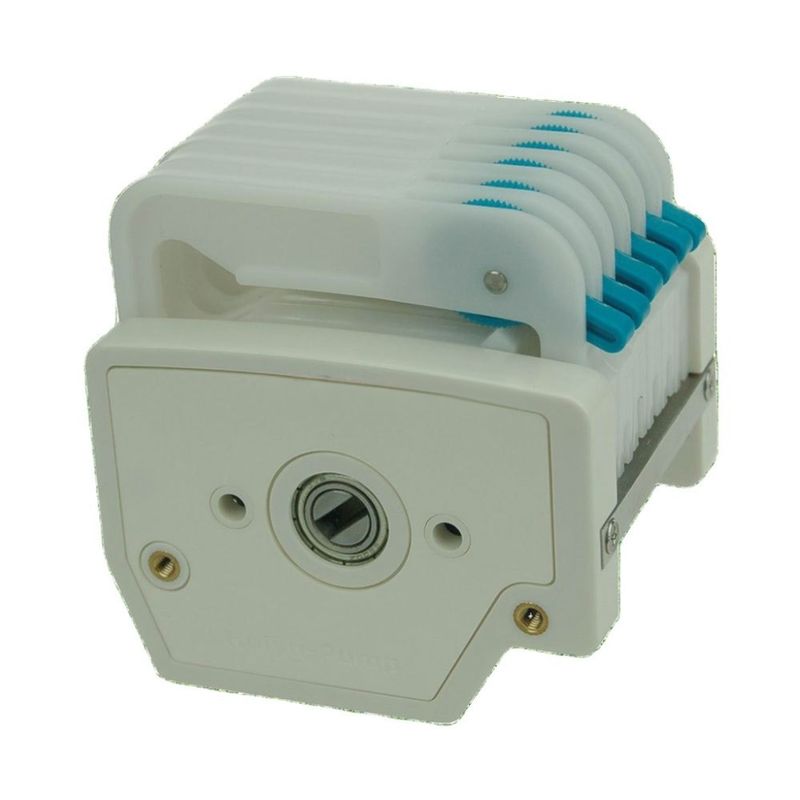

multi-channel DG peristaltic pumps head for perfume machine

Product Description

Mulitple channel DG series Single channel flow range:≤48ml/min

Introduction to Pump Head
Suitable for small flow, high-precision fluid transmission in laboratories, etc.
The ratchet wheel finely adjusts the gap of the pressure pipe to adapt to pipes with different wall thicknesses
Independent loading and unloading of cards, using POM or PVDF material, strong tolerance

Character
♢ Occlusion can be adjusted slightly by ratchet wheel to fit different tubing wall thicknesses requirements.
♢ 6-rollers pump head supply more flow rate.
♢ 10-rollers reduce pulse and flow rates slightly.
♢ Skillful trigger structure, convenient to eject the cartridges (DG-1, DG-2)
♢ Rollers are made from 304 stainless steel, can resistant acid, soda and organic solvent
♢ Cartridges are made from POM or PVDF

Dimension

Tube loading

Technical table

DG PUMP HEAD FLOW RATE CHART

Packing & Delivery

Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.

1 SET PERISTALTIC PUMP INCLUDING:

1.Drive	2.Pump Head	3. silicon tube	4. power cord	5. manual pamphlet	6.controller
Warranty:1 year

Certifications

Company Profile

Hyuweiy(Beijing) Fluid Equipment Co., Ltd is a branch company of Beijing Huiyuweiye international Environmental Engineering Co.,Ltd. It’s a high tech company which produce fluid equipments, combined equipment research and development, production, sales and service in one, with strong professional technical team, superb production process, excellent product quality, good fast service,to provide users with a full range of fluid solutions. We cooperate with many universities to establish a long-term development relationship. Our products are widely used in research laboratories and industrial production and other fields. We have professional mechanical engineer, electrical engineer, OEM engineers, and professional sales and after sale service team, formed a professional, young, the pursuit of the perfect team.

Beijing Huiyuweiye international Environmental Engineering Co., Ltd. Is a group company which Has four subsidiaries. Include Langfang Chaohang Environmental Engineering Co., Ltd., Hebei Fulaier Environmental Protection Engineering and Energy saving Co., Ltd.; Hebei Huiyu Environmental Protection Equipment Co., Ltd. and Hyuweiy(Beijing) Fluid Equipment Co., Ltd. The group owns fixed assets 380 million, annual output value of 800 million.

Over the years, the company leadership has always been adhering to the "science and technology enterprise" concept, explore diversified and sustainable development road.

Our company bases on University of Science and Technology Beijing, Harbin Institute of Technology, Hebei University of Technology, Hebei United Universityand other universities and colleges , relying on its strong advantage of technical talents, introduced advanced science and technology from foreign countries and started to work in precision liquid instrument industry. our production line contains peristaltic pump, laboratory syringe pump, industrial syringe pump, plunger pump and OEM pump according to customer’s specific requirement. Until now we have more than 40 series of 360 models production. Products have been tested by a professional institution, they reached the international advanced level.

Advanced management mode is the rudder of Huiyu’s development. exquisite techniqueis is the sail of Huiyu’s development, Meeting the flourishing of science and technology development, Huiyu must be able to sail. Dare to be the first.

FAQ

1. Are you a factory or trade company?

we are a special and reliable manufacturer of peristaltic pump. Over 10 years experiences in fluid transfer.

2.Any certificates for your peristaltic pump?

Our peristaltic pump with CE, RoHS certificates

3. How long will you delivery after order confirmed?

3 work days if your oder less 10 pcs.

4. The warranty?

1 years
