Product Details
Place of Origin: China
Certification: CE
Payment & Shipping Terms
Price: $2,200.00/sets >=1 sets
Packaging Details: carton with foam plastics
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Name: |

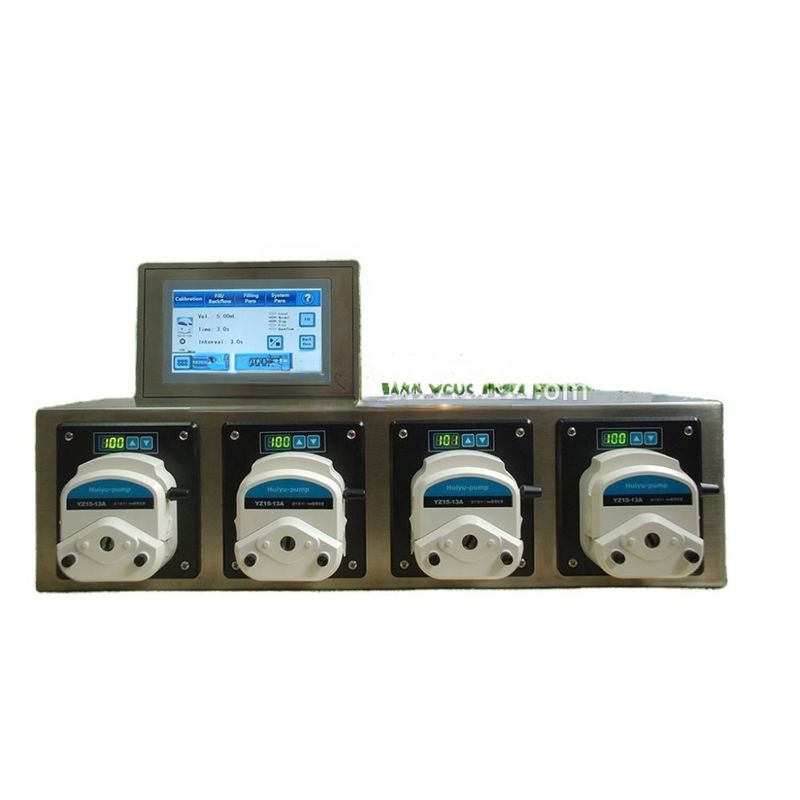

Milk Water Pharmaceutical Multi-heads Filling Nozzles Peristaltic Pump |
Volume Range Of Filling: |
1ml-100ml |
Time Range Of Filling: |
0.5-30s |
Communication Interface: |
RS485 |
Dimension: |
800x200x174 (mm) |
Available Power: |
220VAC±10%/300W |
No-bottle -stop-filling: |
Yes |
NET Weight: |
18.5kg |
IP Grade: |
IP31 |
Port: |
Beijing,Tianjin,Qingdao |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Name: |
Milk Water Pharmaceutical Multi-heads Filling Nozzles Peristaltic Pump |
Volume Range Of Filling: |
1ml-100ml |
Time Range Of Filling: |
0.5-30s |
Communication Interface: |
RS485 |
Dimension: |
800x200x174 (mm) |
Available Power: |
220VAC±10%/300W |
No-bottle -stop-filling: |
Yes |
NET Weight: |
18.5kg |
IP Grade: |
IP31 |
Port: |
Beijing,Tianjin,Qingdao |
Volume range of filling: 1ml—100ml
Time range of filling: 0.5—30s
Motor speed:1-600rpm
Speed range: Calculate automatically according to the volume and time of filling.
Back Suction Angle: 0—360°
Calibration: put the actual volume into the pump, it can make a calibration automatically.
Adjust solution amount online: Users can adjust the solution amount and percentage online
Start/stop control : contacts input (stop—filling when lack of bottles)
Memory Function: Repower the pump, it can keep the parameters before power—down.
Communication Interface: RS485
Dimension: 800×200×174 (mm)
Available Power: 220VAC±10%/150W
Working condition temperature: 0℃—40℃
Relative Humidity : <80%
Weight:18.5Kg
IP Grade: IP31
|
Available Pump head |
Filling Volume(ml) |
Tubing specification |
Filling Time(s) |
repeatability error |
Dispensing head ID(mm) |
Production Capacity (pcs/min) |
||
|
YZ15-13A |
2-3 |
14# |
1-1.5 |
≤±1.5% |
≤1.5 |
30-24 |
||
|
3-6 |
19# |
1-2 |
≤2.0 |
30-20 |
||||
|
6-12 |
16# |
1-2 |
≤3.0 |
30-20 |
||||
|
12-20 |
25# |
1-1.6 |
≤3.0 |
30-23 |
||||
|
20-40 |
17# |
1-2 |
≤3.0 |
30-20 |
||||
|
YZ25-13A |
12-20 |
15# |
1-1.6 |
≤±1.5% |
≤3.0 |
30-23 |
||
|
20-40 |
24# |
1-2 |
≤±1.5% |
≤3.0 |
30-20 |
|||
