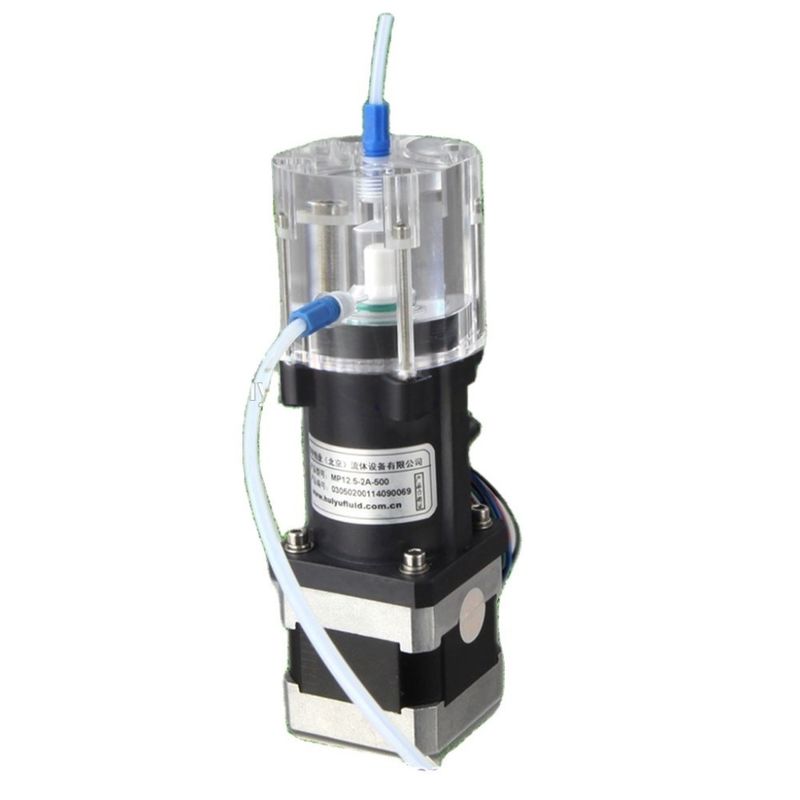

MP12.5-2A Micro Piston Pump Precision Ceramic Plunger Pump

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu

Certification: ce

Model Number: MP12.5-2A

Payment & Shipping Terms

Price: $185.00/sets >=1 sets

Packaging Details: micro ceramic plunger pump
carton with foam plastic

Supply Ability: 1000 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:

mp12.5-2a micro piston pump

,

mp12.5 mini piston pump

,

mp12.5 micro piston pump

Warranty:
1year
Customized Support:
OEM
Application:
Food And Beverage Industry, Wastewater Transport And Flood Control, Wastewater Treatment
Horsepower:
0.04
Power Source:
Electric
Pressure:
0.68mpa
Structure:
Ceramic Plunger Pump
Outlet Size:
1.5mm
Voltage:
24v
Power:
30w
Name:
Micro Ceramic Plunger Pump
Plunger Volume:
500μL
Precision:
≤5‰
Stroke Length:
2000 Step (12.5mm)
Max Volume:
1ml
Max Pressure:
0.68MPa
Dimensions:
137.7mmx61.25mmx45mm
Weight:
0.5KG
Port:
Beijing,Tianjin,Qingdao
Warranty:
1year
Customized Support:
OEM
Application:
Food And Beverage Industry, Wastewater Transport And Flood Control, Wastewater Treatment
Horsepower:
0.04
Power Source:
Electric
Pressure:
0.68mpa
Structure:
Ceramic Plunger Pump
Outlet Size:
1.5mm
Voltage:
24v
Power:
30w
Name:
Micro Ceramic Plunger Pump
Plunger Volume:
500μL
Precision:
≤5‰
Stroke Length:
2000 Step (12.5mm)
Max Volume:
1ml
Max Pressure:
0.68MPa
Dimensions:
137.7mmx61.25mmx45mm
Weight:
0.5KG
Port:
Beijing,Tianjin,Qingdao
Description
MP12.5-2A Micro Piston Pump Precision Ceramic Plunger Pump
Product Description

  MP12.5-2A micro precision ceramic plunger pump

                                                   MP12.5-2A Micro Piston Pump Precision Ceramic Plunger Pump 0



MP Series Micro plunger pump is a small volume, high precision, long life products series. Mainly for equipment and instruments matching application.
    It can transfer liquid less than 5ml. The users can drive the stepping motor to control it, or choose other driver.  There are two kinds of drive to choose:
       12.5-QD1 Without locked-rotor (speed range: 0.75-450rpm)

       12.5-QD2 with locked-rotor (speed range: 90-450rpm)
    Those two models have Electromagnetic valve drive interface, have RS485 communication interface. Address can be      set, can connect more than 32 set pump.

Electronic locked-rotor protection function, It will stop working when locked-rotor.

Product type:

Product type Plunger volume
MP12.5-1A 1000μL
MP12.5-2A 500μL
MP12.5-3A 100μL



Technical parameter
     Precision: ≤5‰
     Stroke length: 2000 step (12.5mm)
     Control precision: 1 step (0.00625mm)
     Plunger speed: ≤12.5mm/0.8s
     Max volume: 1ml
     Life time:≥ 5 million times
     Initial position d
etection: the initial position output low level, other position output high level

     Max pressure: 0.68MPa
     Valve fitting: 2 pieces of 1/4″-28UNF inner thread interface
     Shell of pump head: PMMK
     Dimensions : 137.7mm×61.25mm×45mm
     Operating condition: Temperature 10 to 40℃ Relative humidity 20%-80%
     Weight: 0.5KG


 need to connect with one way valve when working
 Steppper motor data
      Step angle: 1.8°
     Number of phases: 2
     Phase voltage: 2.4V
     Phase current: 1.2A
     Electric resistance: 2Ω ±10%
     Inductance: 4.2mH ±10%



Components of the micro ceramic plunger pump

                 MP12.5-2A Micro Piston Pump Precision Ceramic Plunger Pump 1

The plunger pump on working



                MP12.5-2A Micro Piston Pump Precision Ceramic Plunger Pump 2

CE certificate

         MP12.5-2A Micro Piston Pump Precision Ceramic Plunger Pump 3

           Web:www.avtechnology.co.uk

          TRACKING No:GB/1067/4817/13



OEM option

MP12.5-2A Micro Piston Pump Precision Ceramic Plunger Pump 4
