Product Details
Place of Origin: China
Brand Name: Huiyu
Model Number: MP12.5-3A
Payment & Shipping Terms
Price: $190.00/sets >=1 sets
Packaging Details: carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 YEAR |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
PISTON PUMP |
Name: |
OEM Piston Pump |
Plunger Volume: |
100μL |
Precision: |
≤5‰ |
Stroke Length: |
2000 Step (12.5mm) |
Max Volume: |
1ml |
Life Time: |
≥ 5 Million Times |
Max Pressure: |
0.68MPa |
Shell Of Pump Head: |
PMMK |
Dimensions: |
137.7mmx61.25mmx45mm |
Weight: |
0.5KG |
Port: |
Beijing,Tianjin,Qingdao |
Warranty: |
1 YEAR |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
PISTON PUMP |
Name: |
OEM Piston Pump |
Plunger Volume: |
100μL |
Precision: |
≤5‰ |
Stroke Length: |
2000 Step (12.5mm) |
Max Volume: |
1ml |
Life Time: |
≥ 5 Million Times |
Max Pressure: |
0.68MPa |
Shell Of Pump Head: |
PMMK |
Dimensions: |
137.7mmx61.25mmx45mm |
Weight: |
0.5KG |
Port: |
Beijing,Tianjin,Qingdao |

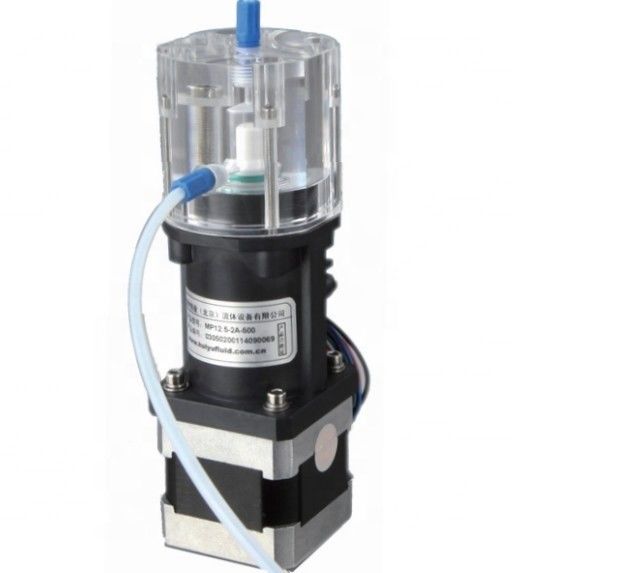

OEM piston pump
MP Series Micro plunger pump is a small volume, high precision, long life products series. Mainly for equipment and instruments matching application.
It can transfer liquid less than 5ml. The users can drive the stepping motor to control it, or choose other driver. There are two kinds of drive to choose:
12.5-QD1 Without locked-rotor (speed range: 0.75-450rpm)
12.5-QD2 with locked-rotor (speed range: 90-450rpm)
Those two models have Electromagnetic valve drive interface, have RS485 communication interface. Address can be set, can connect more than 32 set pump.
Electronic locked-rotor protection function, It will stop working when locked-rotor.
Product type:| Product type | Plunger volume |
| MP12.5-1A | 1000μL |
| MP12.5-2A | 500μL |
| MP12.5-3A | 100μL |
Technical parameter
Precision: ≤5‰
Stroke length: 2000 step (12.5mm)
Control precision: 1 step (0.00625mm)
Plunger speed: ≤12.5mm/0.8s
Max volume: 1ml
Life time:≥ 5 million times
Initial position detection: the initial position output low level, other position output high level
Max pressure: 0.68MPa
Valve fitting: 2 pieces of 1/4″-28UNF inner thread interface
Shell of pump head: PMMK
Dimensions : 137.7mm×61.25mm×45mm
Operating condition: Temperature 10 to 40℃ Relative humidity 20%-80%
Weight: 0.5KG
♦ need to connect with one way valve when working
Steppper motor data
Step angle: 1.8°
Number of phases: 2
Phase voltage: 2.4V
Phase current: 1.2A
Electric resistance: 2Ω ±10%
Inductance: 4.2mH ±10%
