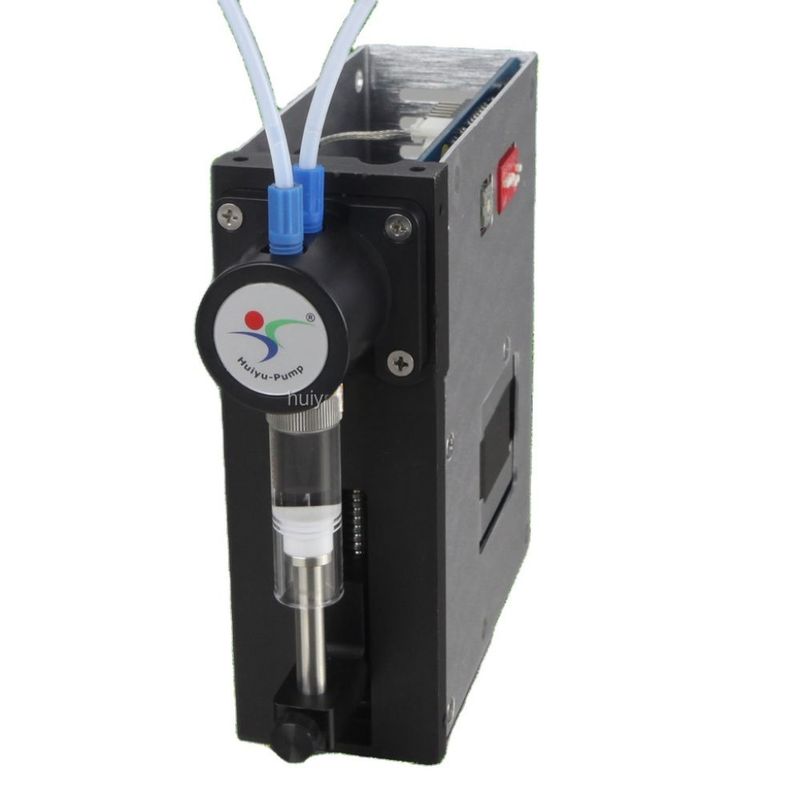

Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: MSP30-1A
Payment & Shipping Terms
Price: $750.00 - $1,050.00/sets
Packaging Details: carton with foam plastic
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.04 |
Power Source: |
Electric |
Pressure: |
0.1mpa |
Structure: |
Syringe Pump |
Cable Length: |
1m |
Outlet Size: |
1.5mm |
Voltage: |
24v |
Power: |
40w |
Motor: |
Stepper Motor |
Name: |
OEM Syringe Pump |
Stroke Length: |
3000 Steps (30mm) |
Precision: |
≤5‰ |
Single Stroke Operating Time: |
1.2--1200s |
Compatible Syringe: |
50ul,100ul,250ul,500ul,1ml,2.5ml,5ml |
Valve Type: |
Two Position Three Way Electromagnetic Valve |
Turn Time: |
≤100ms |
Max Pressure: |
0.1MPa |
Dimensions: |
100mmx65mmx127mm |
Weight: |
0.95KG |
Port: |
Beijing,Tianjin,Qingdao |
Warranty: |
1 |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.04 |
Power Source: |
Electric |
Pressure: |
0.1mpa |
Structure: |
Syringe Pump |
Cable Length: |
1m |
Outlet Size: |
1.5mm |
Voltage: |
24v |
Power: |
40w |
Motor: |
Stepper Motor |
Name: |
OEM Syringe Pump |
Stroke Length: |
3000 Steps (30mm) |
Precision: |
≤5‰ |
Single Stroke Operating Time: |
1.2--1200s |
Compatible Syringe: |
50ul,100ul,250ul,500ul,1ml,2.5ml,5ml |
Valve Type: |
Two Position Three Way Electromagnetic Valve |
Turn Time: |
≤100ms |
Max Pressure: |
0.1MPa |
Dimensions: |
100mmx65mmx127mm |
Weight: |
0.95KG |
Port: |
Beijing,Tianjin,Qingdao |
Technical parameter
Precision: ≤5‰
Stroke length: 3000 steps (30mm)
Control precision: 1 step(0.01mm)
Speed: 0.025-25mm/s
Single stroke operating time:1.2--1200s
Compatible Syringe: 50ul,100ul,250ul,500ul,1ml,2.5ml,5ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms
Fluid Path: borosilicate glass, PTEF, PEEK
Max pressure: 0.1MPa
Valve fitting: 1/4″-28UNF inner thread interface
Output signal: three OC gate
Communication interface: RS232/485 options
The rate of communication: 9600/38400bps options
Set up pump address: through 16 digit dial switch
Dimensions : 100mm×65mm×127mm
Power: 24V DC/1.5A
Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)
Relative humidity 80%
Weight: 0.95KG
Optional accessories
Syringe
Tubing
Power adapter
Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
