Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: MSP60-1A
Payment & Shipping Terms
Price: $1,050.00/sets >=1 sets
Supply Ability: 100 Set/Sets per Week
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Metering |
Power Source: |
Electric |
Pressure: |
Low Pressure, Low Pressure |
Structure: |
Syringe Pump |
Power: |
Electric |
Theory: |
Reciprocating Pump |
Name: |
Accurate Diagnostic Reagent Syringe Pump |
Stroke Length: |
6000 Steps (60mm) |
Precision: |
≤5‰ |
Single Stroke Operating Time: |
1.2--1200s |
Compatible Syringe: |
50ul,100ul,250ul,500ul,1ml,2.5ml,5ml,10ml,25ml |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Metering |
Power Source: |
Electric |
Pressure: |
Low Pressure, Low Pressure |
Structure: |
Syringe Pump |
Power: |
Electric |
Theory: |
Reciprocating Pump |
Name: |
Accurate Diagnostic Reagent Syringe Pump |
Stroke Length: |
6000 Steps (60mm) |
Precision: |
≤5‰ |
Single Stroke Operating Time: |
1.2--1200s |
Compatible Syringe: |
50ul,100ul,250ul,500ul,1ml,2.5ml,5ml,10ml,25ml |

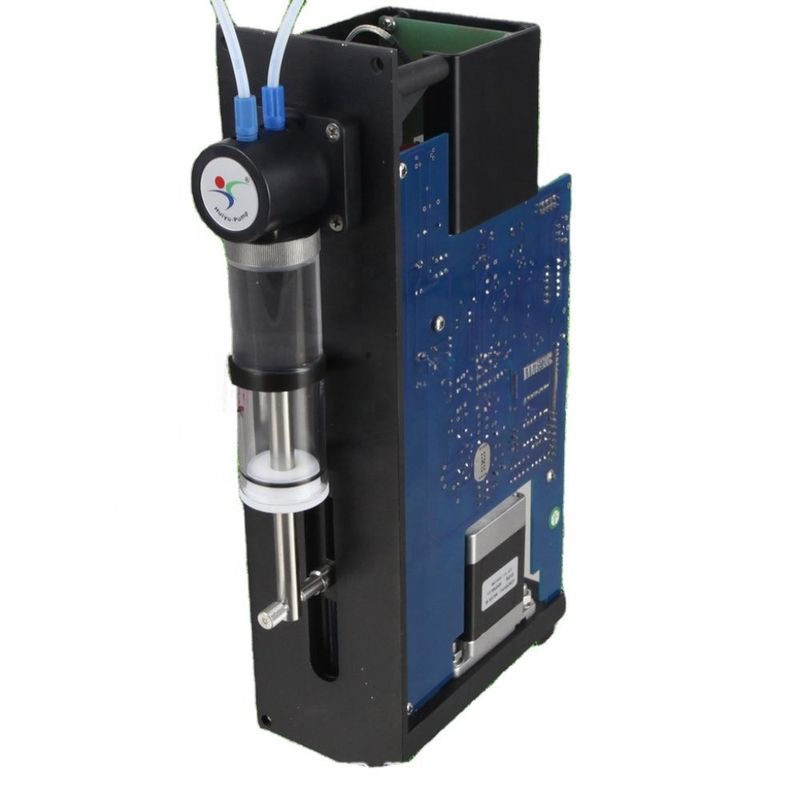

automatic accurate diagnostic reagent syringe pumpps
Technical parameter
Precision: ≤5‰
Stroke length: 6000 steps (60mm)
Control precision: 1 step (0.01mm)
Speed: 0.05-50mm/s
single stroke operating time:1.2--1200s
Compatible Syringe: 50ul,100ul,250ul,500ul,1ml,2.5ml,5ml,10ml,25ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms
Max pressure: 0.1MPa
Fluid Path: borosilicate glass, PTEF, PEEK
Valve fitting: 1/4″-28UNF inner thread interface
Output signal: three OC gate
Communication interface: RS232/485 options
The rate of communication: 9600/38400bps options
Set up pump address: through 16 digit dial switch
Dimensions : 114mm×45mm×254mm
Power: 24V DC/1.5A
Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)
Relative humidity :80%
Weight: 2KG
Optional accessories
Syringe
Tubing
Power adapter
Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
Technical parameters
| Syringe pump | Power supply | Working temperature | Max current | Relative humidity | Dimension(mm) | Weight | |
| MSP60-1A | 24VDC |
10-40℃ | ≤1.5A | 80% | 114×45×254 | 2kg | |
