Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Certification: RoHS
Model Number: LST01-1A
Payment & Shipping Terms
Price: $1,000.00 - $1,400.00/sets
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Wastewater Treatment, Metering |
Power Source: |
Electric |
Pressure: |
Low Pressure, Low Pressure |
Structure: |
Laboratory Syringe Pump |
Power: |
Electric |
Theory: |
Reciprocating Pump |
Name: |
Laboratory Equipment Syringe Pumps |
Stroke Length: |
6000 Steps (78mm) |
Precision: |
≤5‰ |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Wastewater Treatment, Metering |
Power Source: |
Electric |
Pressure: |
Low Pressure, Low Pressure |
Structure: |
Laboratory Syringe Pump |
Power: |
Electric |
Theory: |
Reciprocating Pump |
Name: |
Laboratory Equipment Syringe Pumps |
Stroke Length: |
6000 Steps (78mm) |
Precision: |
≤5‰ |

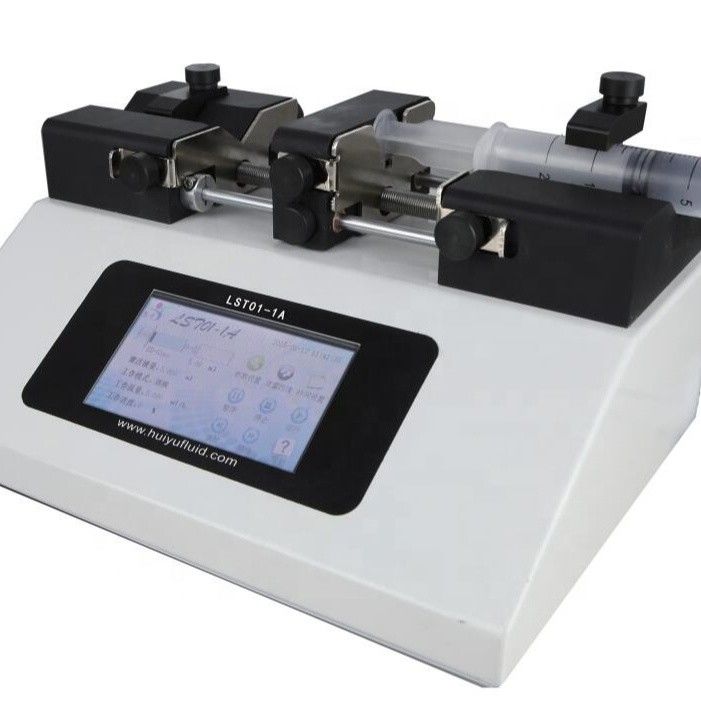

high accuracy laboratory syringe pumps
Technical parameter
Precision: ≤5‰
Stroke length: 6000 steps (78mm)
Control precision: 1 step (0.01mm)
Speed: 0.05-50mm/s
Compatible Syringe: 10ul 25ul 50ul,100ul,250ul,500ul,1ml,5ml,10ml
Turn time: ≤100ms
Max pressure: 0.1MPa
Output signal: 2 OC gate
Communication interface: RS485
The rate of communication: 9600/38400bps options
Dimensions : 280mm×210mm×140mm
Power: AC90V-260V /1.5A
Operating condition: Temperature 0 to 40℃(the temperature effect syringe much)
Relative humidity :80%
Weight: 3.6KG
Optional accessories
Syringe
Power adapter
Technical parameters
| Syringe pump | Power supply | Working temperature | Max current | Relative humidity | Dimension(mm) | Weight | |
| LST01-1A | AC90-260V |
0-40℃ | ≤1.5A | 80% | 280×210×140 | 3.6kg | |
