Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Certification: RoHS
Model Number: BT300J-3A
Payment & Shipping Terms
Price: $350.00 - $600.00/sets
Packaging Details: carton
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
AC90V-260V |
Power: |
50W, Electric |
Standard Or Nonstandard: |
Nonstandard |
Product: |
2017 New Top Grade Pharmacy Peristaltic Structure Pump |
Brand: |
Huiyu Fluid |
Flow Rate: |
0.07-1140ml/min |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
AC90V-260V |
Power: |
50W, Electric |
Standard Or Nonstandard: |
Nonstandard |
Product: |
2017 New Top Grade Pharmacy Peristaltic Structure Pump |
Brand: |
Huiyu Fluid |
Flow Rate: |
0.07-1140ml/min |

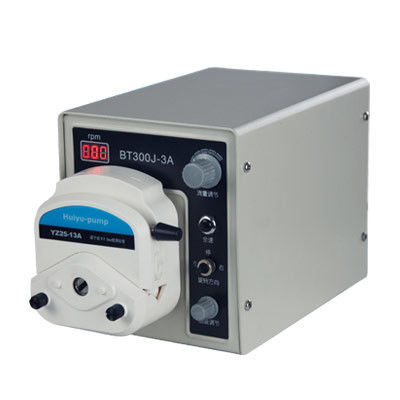

RS485 communication compact size peristaltic pump BT300J-3A
Product description
It is suitable for accurate transmission of flow in laboratories and industrial fields. The speed can reach 300rpm and the flow can reach 1140ml/min. The plastic-sprayed metal shell is stable and generous, and can be used in harsh industrial production environments.
Features
Membrane buttons can control start and stop, direction and speed
Can quickly fill and empty function
It can communicate with the host computer
External control signal can control start and stop, direction and speed
Power-down memory function
Leakage protection function
Overheat protection function
Technical parameter
Speed range: 1-300rpm, resolution 1rpm
Direction of rotation: forward/reverse
Adjustment method: membrane button and knob adjustment
Display mode: three-digit LED digital tube displays the current speed
External control interface: start-stop control, direction control, speed control (0-5V/0-10V voltage signal, 4-20mA current signal, 0-10kHz pulse signal are all available)
Communication mode: RS485 half duplex
Applicable power supply: 90-260V AC, 50/60Hz
Work rate: ≤50W
Working environment: ambient temperature 0-40℃, relative humidity <80℃
Dimensions: 237×148×170 (length×width×height) mm
Weight: 3.5kg
Degree of protection: IP31
