CE RoHS Laundry Chemical Dispenser Peristaltic Pump

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu

Certification: RoHS

Model Number: BT300F-1A

Payment & Shipping Terms

Price: $540.00 - $900.00/sets

Supply Ability: 100 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:

ce peri pump

,

ce peristaltic pump

,

rohs peri pump

Customized Support:
OEM
Application:
Food And Beverage Industry, Metering
Horsepower:
300rpm
Power Source:
Electric
Pressure:
0.2Mpa, Low Pressure
Structure:
Reciprocal
Power:
Electric
Standard Or Nonstandard:
Nonstandard
Product:
Biological Reagent Dosing Peristaltic Pump
Brand:
Huiyu
Customized Support:
OEM
Application:
Food And Beverage Industry, Metering
Horsepower:
300rpm
Power Source:
Electric
Pressure:
0.2Mpa, Low Pressure
Structure:
Reciprocal
Power:
Electric
Standard Or Nonstandard:
Nonstandard
Product:
Biological Reagent Dosing Peristaltic Pump
Brand:
Huiyu
Description

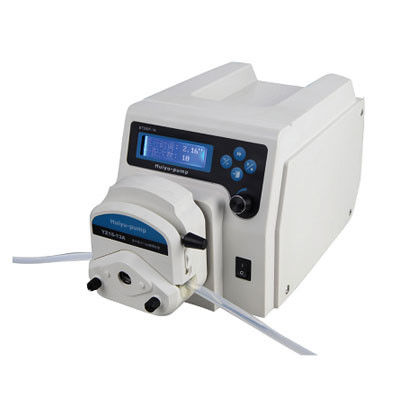

CE RoHS Laundry Chemical Dispenser Peristaltic Pump



Product Description

   biological reagent dosing peristaltic pump

max flow rate :1140ml/min
CE RoHS Laundry Chemical Dispenser Peristaltic Pump 0
Technical parameter
    Speed: 1-300 rpm, reversible Speed precision: 1 rpm

     Speed control: membrane keypad and rotary encoded switch
     Display: LCD displays flow rate, speed or dispensing mode
     Copy number: 1 to 999, 0 means unlimited cycle
     Dispensing volume: 0.1 mL to 99.9 L
     Pause time : 1 to 999 sec
     Back suction angle: 0 to 360°, 18° increments
     External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
     Communication: RS485
     Output signal: start/stop, direction output and speed, OC gate output mode
     Power: 90-260V AC,50/60Hz
     Power consumption: < 50W
     Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
     Dimensions (L × W × H): 276×184×175 (mm)
     Drive Weight: 3.5 kg

Technical parameters
Pump head  model Available tubing flow rate range (ml/min)
  YZ15-lA 13#, 14#, 19#, 16#, 25#, 17#, 18#      wall thickness:1.5mm 0.07-1140ml/min
YZ25-lA 15#, 24#      wall thickness:2.5mm 1.7-810ml/min





  CE RoHS Laundry Chemical Dispenser Peristaltic Pump 1CE RoHS Laundry Chemical Dispenser Peristaltic Pump 2CE RoHS Laundry Chemical Dispenser Peristaltic Pump 3



OEM option

CE RoHS Laundry Chemical Dispenser Peristaltic Pump 4

Packaging & Shipping

CE RoHS Laundry Chemical Dispenser Peristaltic Pump 5

 Special designed carton and foam plastic cushion

 Professional bundling machine ensure safe delivery to customers directly .



These precise instruments are mainly delivered by Express like DHL FedEx etc.

                     CE RoHS Laundry Chemical Dispenser Peristaltic Pump 6

Accessories

CE RoHS Laundry Chemical Dispenser Peristaltic Pump 7

CE certificate

         CE RoHS Laundry Chemical Dispenser Peristaltic Pump 8
