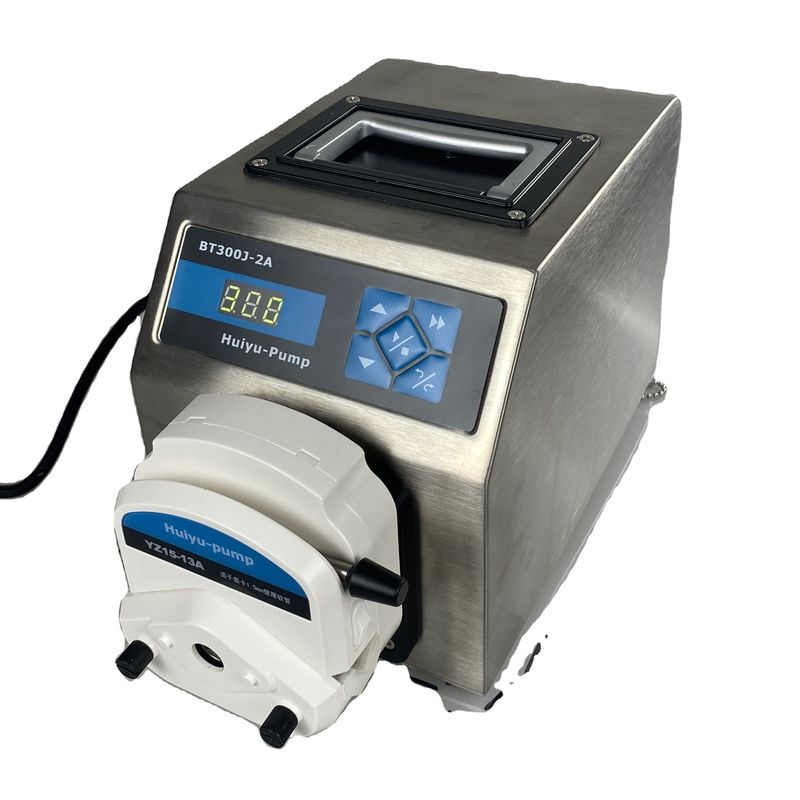

Cost Effective And High Precision Multi Channels Peristaltic Liquid Pump

Name: Cost Effective And High Precision Multi Channels Peristaltic Liquid Pump
Brand: Huiyu fluid
SKU: BT300J-2A
Price: 350.00 USD
Availability: InStock
Rating: 4.9 (133 reviews)

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu fluid

Certification: RoHS

Model Number: BT300J-2A

Payment & Shipping Terms

Price: $350.00 - $600.00/sets

Packaging Details: carton

Supply Ability: 100 Set/Sets per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            high precision peristaltic pump, high precision peristaltic liquid pump


Warranty:	1 Year	Customized Support:	OEM
Application:	Food And Beverage Industry, Metering	Horsepower:	300rpm
Power Source:	Electric	Pressure:	0.2Mpa, Low Pressure
Structure:	Reciprocal	Voltage:	AC90V-260V
Power:	50W, Electric	Standard Or Nonstandard:	Nonstandard
Product:	2017 New Top Grade Pharmacy Peristaltic Structure Pump	Brand:	Huiyu Fluid
Flow Rate:	0.07-1140ml/min

Warranty:	1 Year
Customized Support:	OEM
Application:	Food And Beverage Industry, Metering
Horsepower:	300rpm
Power Source:	Electric
Pressure:	0.2Mpa, Low Pressure
Structure:	Reciprocal
Voltage:	AC90V-260V
Power:	50W, Electric
Standard Or Nonstandard:	Nonstandard
Product:	2017 New Top Grade Pharmacy Peristaltic Structure Pump
Brand:	Huiyu Fluid
Flow Rate:	0.07-1140ml/min

Description

Cost Effective And High Precision Multi Channels Peristaltic Liquid Pump

Product Description

BT300J-2A/YZ15-13B

Flow range:≤1140ml/min

Industrial peristaltic pump, high protection level
Suitable for industrial production environments such as dampness and heavy sinking

Specification

Product Features
◇ Membrane buttons can control start and stop, direction and speed
◇ Can quickly fill and empty function
◇ It can communicate with the host computer
◇ External control signal can control start and stop, direction and speed
◇ Power-down memory function
◇ Leakage protection function
◇ Overheat protection function
Technical parameter
◇ Speed range: 1-300rpm, resolution 1rpm
◇ Direction of rotation: forward/reverse
◇ Adjustment method: membrane button and knob adjustment
◇ Display mode: three-digit LED digital tube displays the current speed
◇ External control interface: start-stop control, direction control, speed control (0-5V/0-10V voltage signal, 4-20mA current
signal, 0-10kHz pulse signal are all available)
◇ Communication method: RS485 half duplex
◇ Applicable power supply: 90-260V AC, 50/60Hz
◇ Work rate: ≤50W
◇ Working environment: ambient temperature 0-40℃, relative humidity <80℃
◇ Dimensions: 250x160x190 (length x width x height) mm
◇ Weight: 4.32kg
◇ IP: 55

Dimentions

Packing & Delivery

Company Profile

Hyuweiy(Beijing) Fluid Equipment Co., Ltd is a branch company of Beijing Huiyuweiye international Environmental Engineering Co.,
Ltd. It’s a high tech company which produce fluid equipments, combined equipment research and development, production, sales and
service in one, with strong professional technical team, superb production process, excellent product quality, good fast service,
to provide users with a full range of fluid solutions. We cooperate with many universities to establish a long-term development
relationship. Our products are widely used in research laboratories and industrial production and other fields. We have
professional mechanical engineer, electrical engineer, OEM engineers, and professional sales and after sale service team, formed a
professional, young, the pursuit of the perfect team.

Beijing Huiyuweiye international Environmental Engineering Co., Ltd. Is a group company which
Has four subsidiaries. Include Langfang Chaohang Environmental Engineering Co., Ltd., Hebei Fulaier Environmental Protection
Engineering and Energy saving Co., Ltd.; Hebei Huiyu Environmental Protection Equipment Co., Ltd. and Hyuweiy(Beijing) Fluid
Equipment Co., Ltd. The group owns fixed assets 380 million, annual output value of 800 million.

Over the years, the company leadership has always been adhering to the "science and technology enterprise" concept, explore
diversified and sustainable development road.

Our company bases on University of Science and Technology Beijing, Harbin Institute of Technology, Hebei University of Technology,
Hebei United Universityand other universities and colleges , relying on its strong advantage of technical talents, introduced
advanced science and technology from foreign countries and started to work in precision liquid instrument industry. our production
line contains peristaltic pump, laboratory syringe pump, industrial syringe pump, plunger pump and OEM pump according to
customer’s specific requirement. Until now we have more than 40 series of 360 models production. Products have been tested by a
professional institution, they reached the international advanced level.

Advanced management mode is the rudder of Huiyu’s development. exquisite techniqueis is the sail of Huiyu’s development, Meeting
the flourishing of science and technology development, Huiyu must be able to sail. Dare to be the first.

FAQ

1. Are you a factory or trade company? we are a special and reliable manufacturer of peristaltic pump. Over 10 years experiences
in fluid transfer.
2.Any certificates for your peristaltic pump?
Our peristaltic pump with CE, RoHS certificates
3. How long will you delivery after order confirmed?
3 work days if your oder less 10 pcs.
4. The warranty?
1 years
