Product Details
Place of Origin: Hebei, China
Brand Name: Huiyu
Certification: RoHS

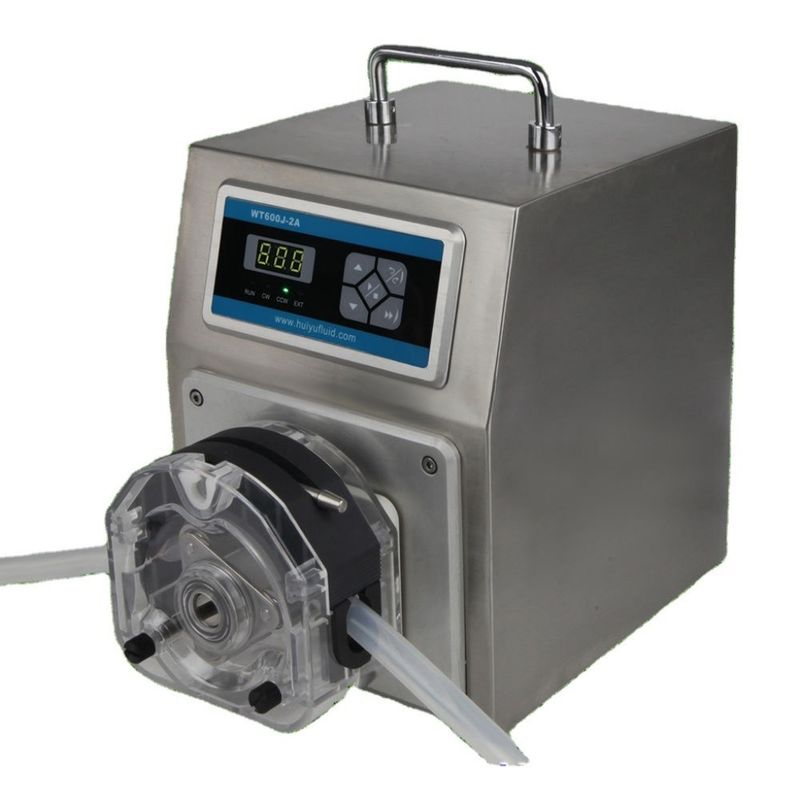

Model Number: WT600J-2A
Payment & Shipping Terms
Price: $100.00 - $500.00/sets
Packaging Details: 1 pump in 1 carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Laboratory |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC220V±20% |
Power: |
200 |
Type: |
WT600J-2A |
Motor: |
Stepper Motor |
Max Flow Rate: |
6000ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Laboratory |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC220V±20% |
Power: |
200 |
Type: |
WT600J-2A |
Motor: |
Stepper Motor |
Max Flow Rate: |
6000ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
|
Motor speed
|
60-600rpm
|
|
Motor speed precision
|
≤±1％
|
|
motor speed resolution
|
1.0rpm
|
|
Output torque
|
1.5Nm
|
|
Display
|
3 digit LED for speed;4 LED indicators for working status
|
|
Memory function
|
save parameter automatically
|
|
remote control port
|
(0.5-5v/1-10v voltage signal,4-20mA,0-10kHz singal are optional)
to control the motor speed(60-600rpm)
|
|
Communication port
|
RS485
|
|
Power supply
|
AC220V±20％,50/60Hz
|
|
Max power consumption
|
≤200W
|
|
Working environment
|
0-40℃,relative humidity＜80％
|
|
Measurement
|
250x190x255(LXWXH)mm
|
|
Weight
|
8KG
|
|
IP rating
|
IP55
|
|
1.Drive
|
2.Pump Head
|
3. 2 meters silicon tube
|
4. power cord
|
5. manual pamphlet
|
||||
|
Warranty:1 year
|
|
|
|
|
||||
