Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: MSP30-2A
Payment & Shipping Terms
Price: $600.00/sets >=1 sets
Packaging Details: carton with foam plastic
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Syringe Pump |
Voltage: |
24v |
Motor: |
Stepper Motor |
Name: |
Economic Industrial Syringe Pump |
Stroke Length: |
1000 Steps (30mm) |
Precision: |
≤5‰ |
Single Stroke Operating Time: |
2--60s |
Compatible Syringe: |
500ul,1ml,2.5ml,5ml |
Valve Type: |
Two Position Three Way Electromagnetic Valve |
Turn Time: |
≤100ms |
Max Pressure: |
0.1MPa |
Dimensions: |
100mmx65mmx127mm |
Weight: |
0.85KG |
Port: |
Beijing,Tianjin,Qingdao |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Syringe Pump |
Voltage: |
24v |
Motor: |
Stepper Motor |
Name: |
Economic Industrial Syringe Pump |
Stroke Length: |
1000 Steps (30mm) |
Precision: |
≤5‰ |
Single Stroke Operating Time: |
2--60s |
Compatible Syringe: |
500ul,1ml,2.5ml,5ml |
Valve Type: |
Two Position Three Way Electromagnetic Valve |
Turn Time: |
≤100ms |
Max Pressure: |
0.1MPa |
Dimensions: |
100mmx65mmx127mm |
Weight: |
0.85KG |
Port: |
Beijing,Tianjin,Qingdao |

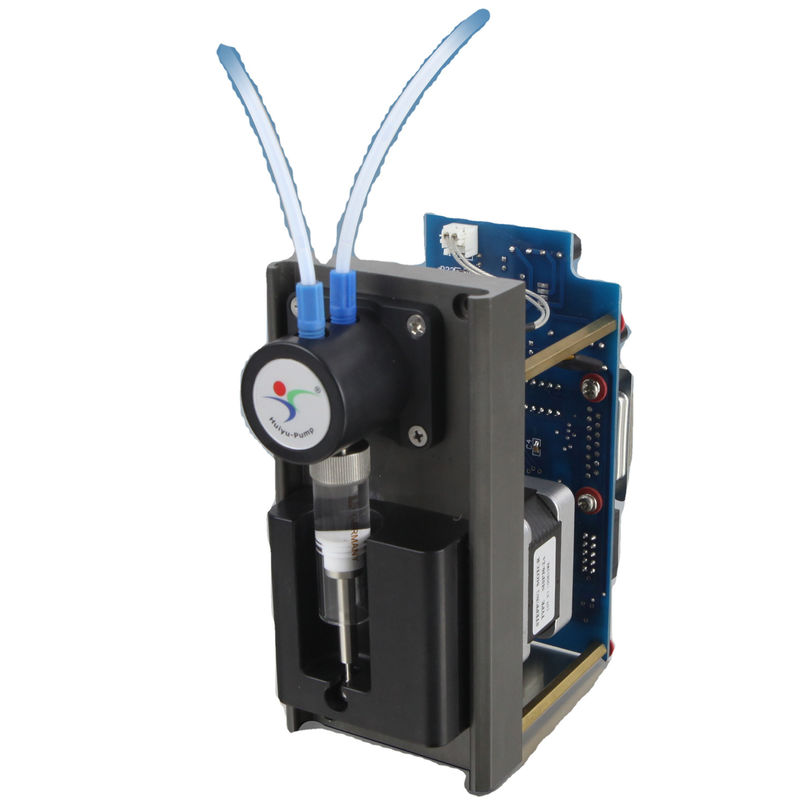

syringe dispensing pump
Technical parameter
Precision: ≤5‰
Stroke length: 1000 steps (30mm)
Control precision: 1 step (0.03mm)
Speed: 0.5-15mm/s
Single stroke operating time:2--60s
Compatible Syringe: 500ul,1ml,2.5ml,5ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms
Max pressure: 0.1MPa
Fluid Path: borosilicate glass, PTEF, PEEK
Valve fitting: 1/4″-28UNF inner thread interface
Output signal: one OC gate
Communication interface: RS232/485 options
The rate of communication: 9600/38400bps options
Set up pump address: through 16 digit dial switch
Dimensions : 100mm×65mm×127mm
Power: 24V DC/1.5A
Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)
Relative humidity 80%
Weight: 0.85KG
Optional accessories
Syringe
Tubing
Power adapter
Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
