China accurate micro volume laboratory syringe pump

Name: China accurate micro volume laboratory syringe pump
Brand: Huiyuweiy(Beijing) Fluid Equipment Co., Ltd.
SKU: LST01-1A
Price: 375.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu

Model Number: LST01-1A

Payment & Shipping Terms

Price: $750.00/sets >=1 sets

Packaging Details: laboratory syringe pump
carton with foam plastic

Supply Ability: 100 Set/Sets per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1 Year	Customized Support:	OEM
Application:	Wastewater Transport And Flood Control	Power Source:	Electric
Pressure:	Low Pressure	Structure:	Laboratory Syringe Pump
Name:	Laboratory Syringe Pump	Stroke Length:	6000 Steps (78mm)
Precision:	≤5‰	Compatible Syringe:	10ul 25ul 50ul,100ul,250ul,500ul,1ml,5ml,10ml
Turn Time:	≤100ms	Max Pressure:	0.1MPa
Dimensions:	280mmx210mmx140mm	Weight:	3.6KG
Port:	Beijing,Tianjin,Qingdao

Warranty:	1 Year
Customized Support:	OEM
Application:	Wastewater Transport And Flood Control
Power Source:	Electric
Pressure:	Low Pressure
Structure:	Laboratory Syringe Pump
Name:	Laboratory Syringe Pump
Stroke Length:	6000 Steps (78mm)
Precision:	≤5‰
Compatible Syringe:	10ul 25ul 50ul,100ul,250ul,500ul,1ml,5ml,10ml
Turn Time:	≤100ms
Max Pressure:	0.1MPa
Dimensions:	280mmx210mmx140mm
Weight:	3.6KG
Port:	Beijing,Tianjin,Qingdao

Description

China accurate micro volume laboratory syringe pump

Product Description

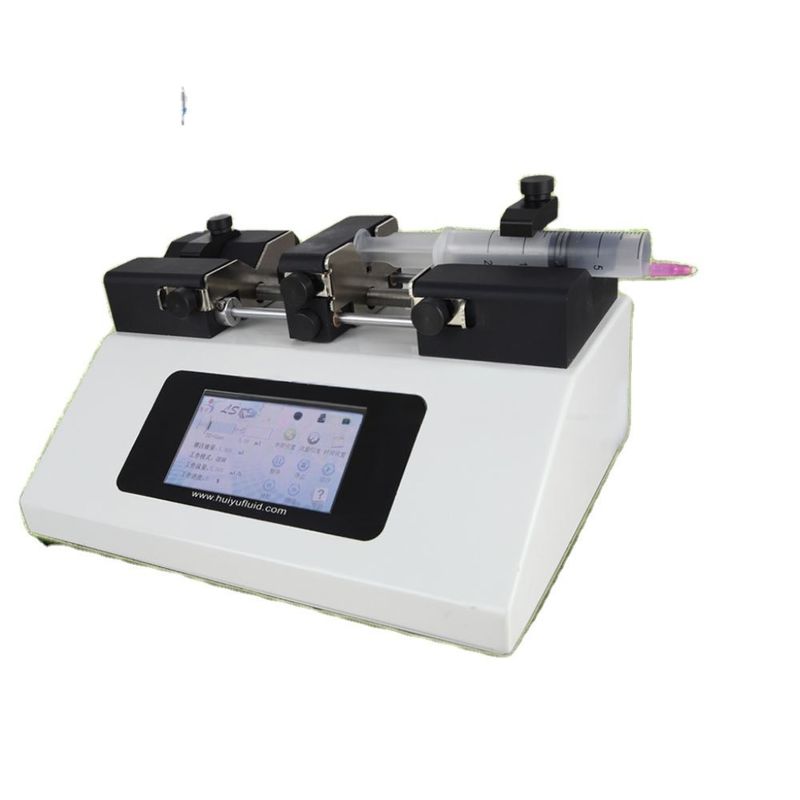

touch screen laboratory syringe pump

China accurate micro volume laboratory syringe pump 0

Technical parameter
Precision: ≤5‰
Stroke length: 6000 steps (78mm)
Control precision: 1 step (0.01mm)
Speed: 0.05-50mm/s
Compatible Syringe: 10ul 25ul 50ul,100ul,250ul,500ul,1ml,5ml,10ml
Turn time: ≤100ms
Max pressure: 0.1MPa
Output signal: 2 OC gate
Communication interface: RS485
The rate of communication: 9600/38400bps options
Dimensions : 280mm×210mm×140mm
Power: AC90V-260V /1.5A
Operating condition: Temperature 0 to 40℃(the temperature effect syringe much)
Relative humidity :80%
Weight: 3.6KG

Optional accessories
Syringe
Power adapter

Technical parameters

Syringe pump	Power supply		Working temperature	Max current	Relative humidity	Dimension(mm)	Weight
LST01-1A	AC90-260V		0-40℃	≤1.5A	80%	280×210×140	3.6kg

Industrial syringe pump

Click the photo for technical details

Dispensing peristaltic pump

Click the photo for technical details China accurate micro volume laboratory syringe pump 3

peristaltic pump filling system

click the photo for technical details

OEM option

China accurate micro volume laboratory syringe pump 6

Contact

Willie wang

Skype ID : wang.yongqiang1

QQ : 2042293249

Email :sales@huiyufluid.com

Mobile :+86-18601191057/18131258138

Tel :+86-312-5881795, +86-10-63707366

Fax :+86-1063707968
