Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Certification: ce

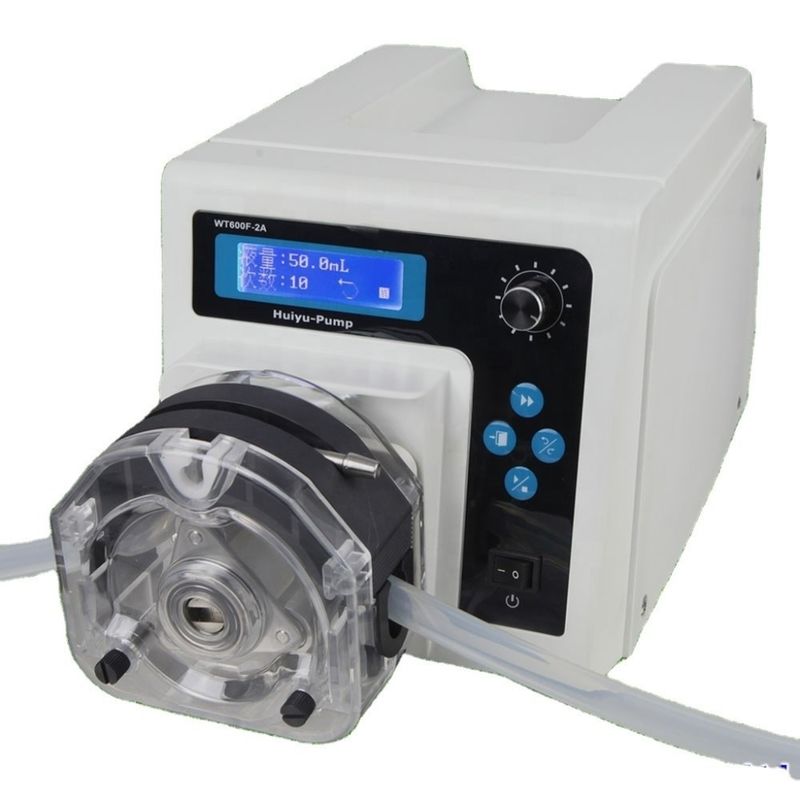

Model Number: WT600F-2A
Payment & Shipping Terms
Price: $1,150.00/sets >=1 sets
Packaging Details: 1 peristaltic pump in 1 carton , with foam plastic
Supply Ability: 100 Set/Sets per Week
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Metering |
Horsepower: |
0.4 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Reciprocal |
Cable Length: |
1.5m |
Outlet Size: |
9.6mm |
Voltage: |
220v |
Power: |
400w |
Motor: |
DC Brushless Motor |
Product: |
Peristaltic Pump |
Brand: |
Huiyu |
Flow Rate: |
0.7-6000ml/min |
Power Supply: |
AC 90V-260V/40W |
Motor Speed: |
10-600 Rpm |
Dimension(LxWxH): |
285 X207 X 180 (mm) |
Drive Weight: |
5.2 Kg |
Port: |
Beijing,Tianjin,Qingdao |
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Metering |
Horsepower: |
0.4 |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Reciprocal |
Cable Length: |
1.5m |
Outlet Size: |
9.6mm |
Voltage: |
220v |
Power: |
400w |
Motor: |
DC Brushless Motor |
Product: |
Peristaltic Pump |
Brand: |
Huiyu |
Flow Rate: |
0.7-6000ml/min |
Power Supply: |
AC 90V-260V/40W |
Motor Speed: |
10-600 Rpm |
Dimension(LxWxH): |
285 X207 X 180 (mm) |
Drive Weight: |
5.2 Kg |
Port: |
Beijing,Tianjin,Qingdao |
Technical paremeter
Speed : 10-600 rpm, reversible
Speed precision: 1 rpm
Speed control: toggle switch and rotary encoded switch, accept external control and communication control
Display: LCD
Dispensing volume: 0.1 mL to 99.9 L
Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
Copy number: 1 to 9999 , 0 means unlimited cycle
Pause time : 0.1 s to 99 min
External control: start/stop control, direction control, speed control (0 - 5V ,0 -10V , 4 - 20 mA , 0 - 10KHz optional )
running mode signal output: 166.7Hz-10kHz
corresponding10rpm-600rpm
Start and stop status signal output: OC gate signal output
Direction status signal output: OC gate signal output
Communication interface: RS 485
Memory function: repower the pump, user can choose whether to continue in accordance with the state before the power-down
Prime button for fast filling and emptying
Power: AC 90V-260V/40W
Operating condition: Temperature 0 to 40°C, relative humidity < 80%
Dimensions (L × W × H): 285 × 207 × 180 (mm)
IP rating: IP 31
Drive weight: 5.2 kg
Technical parameters
| Pump head Picture | Pump head model | Available tubing | flow rate range (ml/min) |
| YZ15-1A | 13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm | 0.7-2200ml/min | |
| 2* YZ15-1A | single channel 0.7-2200ml/min | ||
| YZ25-1A | 15#,24# wall thickness 2.5mm | 17-1600ml/min | |
| 2* YZ25-1A | single channel 17-1600ml/min | ||
| BZ25-1A | 24# wall thickness 2.5mm | 29-1600ml/min | |
| KZ25 | 15#,24#,35#,36# | 34-6000ml/min |
