Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Certification: ce
Model Number: BT100L-1A
Payment & Shipping Terms
Price: $450.00 - $900.00/sets
Packaging Details: multicanal bomba peristaltica
carton with foam plastics
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 YEAR |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
40w |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
6.4mm |
Voltage: |
220v |
Power: |
40w |
Motor: |
Stepper Motor |
Product: |
Multicanal Bomba Peristaltica |
Brand: |
Huiyu Fluid |
Flow Rate: |
0.07-380ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
0.1-100rpm |
Dimension(LxWxH): |
205X 155 X 227mm |
Weight: |
3.8kg |
Port: |
Beijing |
Warranty: |
1 YEAR |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
40w |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
6.4mm |
Voltage: |
220v |
Power: |
40w |
Motor: |
Stepper Motor |
Product: |
Multicanal Bomba Peristaltica |
Brand: |
Huiyu Fluid |
Flow Rate: |
0.07-380ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
0.1-100rpm |
Dimension(LxWxH): |
205X 155 X 227mm |
Weight: |
3.8kg |
Port: |
Beijing |

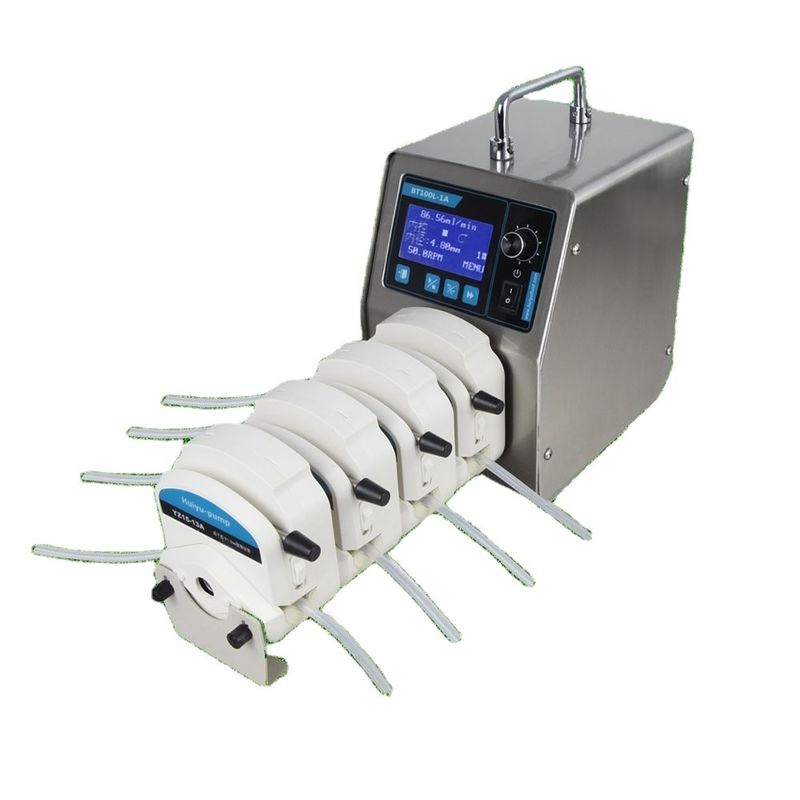

multicanal bomba peristaltica
BT100L-1A
Max flow rate:380ml/min
Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
