Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: WT600F-1A
Payment & Shipping Terms
Price: $1,350.00/sets >=1 sets
Packaging Details: 1 metering H2SO4 peristaltic pump in 1 carton , with foam plastic
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v |
Motor: |
Dc Brushless Motor |
Product: |
Acid Transfer Peristaltic Pump |
Brand: |
Huiyu |
Flow Rate: |
100-11000ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
10-600 Rpm |
Dimension(LxWxH): |
420X229X270 (mm) |
Drive Weight: |
12kg |
IP Rating: |
IP65 |
Usage: |
Water,fluid,reagent,oil,detergent |
Pressure: |
0.2mpa 2bar 30psi |
Port: |
Beijing,Tianjin,Qingdao |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v |
Motor: |
Dc Brushless Motor |
Product: |
Acid Transfer Peristaltic Pump |
Brand: |
Huiyu |
Flow Rate: |
100-11000ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
10-600 Rpm |
Dimension(LxWxH): |
420X229X270 (mm) |
Drive Weight: |
12kg |
IP Rating: |
IP65 |
Usage: |
Water,fluid,reagent,oil,detergent |
Pressure: |
0.2mpa 2bar 30psi |
Port: |
Beijing,Tianjin,Qingdao |

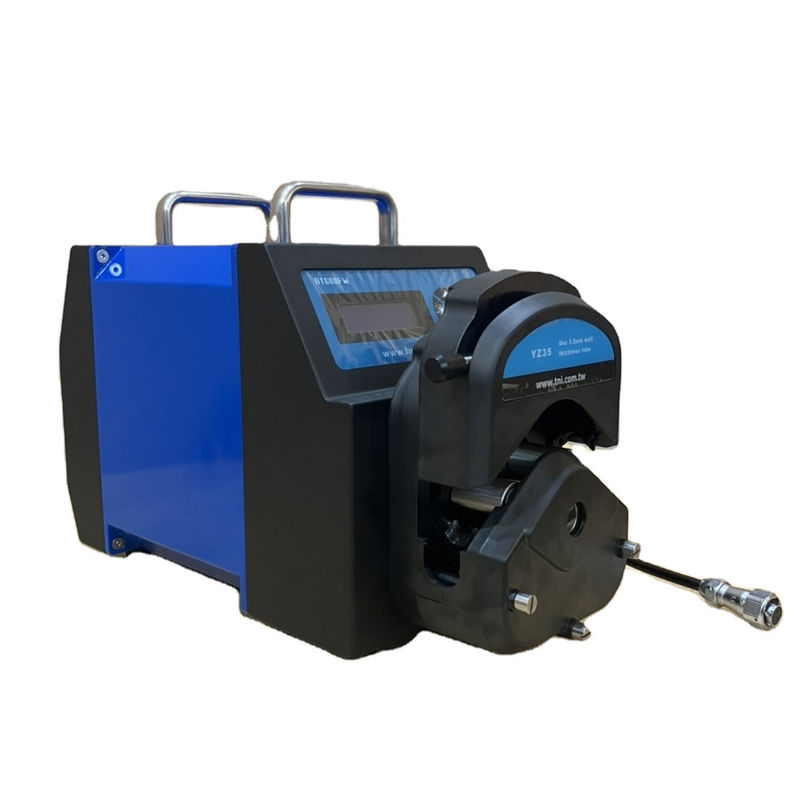

metering H2SO4 peristaltic pump
Technical parameter
Speed: 10-600 rpm, reversible Speed precision: 1 rpm
Speed control: membrane keypad
Display: LCD displays flow rate, speed or dispensing mode
Copy number: 1 to 9999, 0 means unlimited cycle
Dispensing volume: 0.1mL to 99.9L
Pause time : 0.1 to 99.9min
Back Suction: 0 to 9.9 revolutions , precision is 0.1 revolution
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
Communication: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Power: AC176V-264V 50/60Hz
Power consumption: < 300W
Operating condition: Temperature 0 to 40°C, Relative humidity < 100%
Dimensions (L × W × H): 420×229×270 (mm)
Driver W eight:12kg
Functions
Dispensing function
Calibration function
Back suction function
Display:LCD displays
Prime key:for fast filling and emptying
Memory funciton
Communication function
Output function
Technical Data Sheet
| Pump head | model | Available tubing | flow rate range (ml/min) |
| YZ35-1A | 73#,82# | 100-11000 | |
| 2* YZ35-1A | Single channel 100-11000 | ||
| KZ35 | 73#,82# | 100-11000 | |
| 2* KZ35-1A | Single channel 100-11000 |
