Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: WT600F-1A
Payment & Shipping Terms
Price: $1,060.00 - $1,780.00/sets
Packaging Details: carton
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
600rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
ACC176V-264V |
Power: |
50/60Hz, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Product: |
Peristaltic Pump For Filling Brake Liquid |
Brand: |
Huiyu |
Flow Rate: |
100-11000ml/min |
Power Supply: |
AC 220V ±20% |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
600rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
ACC176V-264V |
Power: |
50/60Hz, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Product: |
Peristaltic Pump For Filling Brake Liquid |
Brand: |
Huiyu |
Flow Rate: |
100-11000ml/min |
Power Supply: |
AC 220V ±20% |

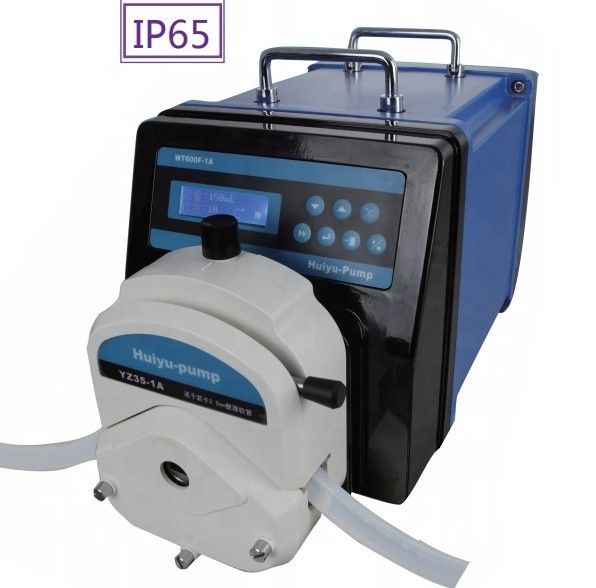

peristaltic pump for filling brake liquid
Technical parameter
Speed: 10-600 rpm, reversible Speed precision: 1 rpm
Speed control: membrane keypad
Display: LCD displays flow rate, speed or dispensing mode
Copy number: 1 to 9999, 0 means unlimited cycle
Dispensing volume: 0.1mL to 99.9L
Pause time : 0.1 to 99.9min
Back Suction: 0 to 9.9 revolutions , precision is 0.1 revolution
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
Communication: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Power: AC176V-264V 50/60Hz
Power consumption: < 300W
Operating condition: Temperature 0 to 40°C, Relative humidity < 100%
Dimensions (L × W × H): 420×229×270 (mm)
Driver W eight:12kg
Functions
Dispensing function
Calibration function
Back suction function
Display:LCD displays
Prime key:for fast filling and emptying
Memory funciton
Communication function
Output function
Technical Data Sheet
| Pump head | model | Available tubing | flow rate range (ml/min) |
| YZ35-1A | 73#,82# | 100-11000 | |
| 2* YZ35-1A | Single channel 100-11000 | ||
| KZ35 | 73#,82# | 100-11000 | |
| 2* KZ35-1A | Single channel 100-11000 |
