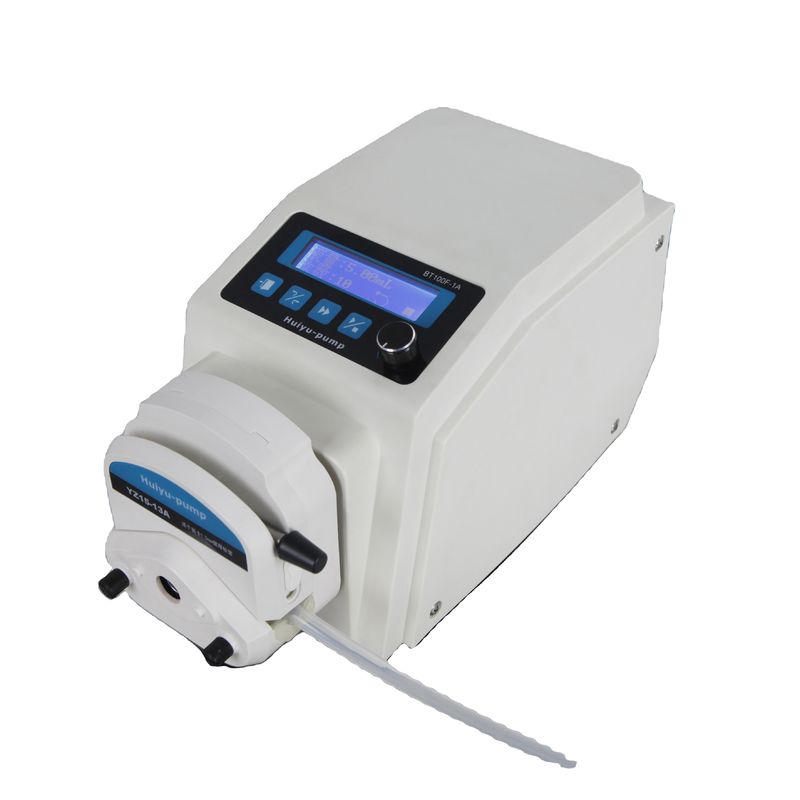

high accuracy glue transfer peristaltic pumps for packing machine

Name: high accuracy glue transfer peristaltic pumps for packing machine
Brand: Huiyuweiy(Beijing) Fluid Equipment Co., Ltd.
SKU: BT100F-1A
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu

Model Number: BT100F-1A

Payment & Shipping Terms

Price: $350.00 - $550.00/sets

Packaging Details: high accurancy glue transfer peristaltic pumps for packing machine
with foam plastic

Supply Ability: 100 Set/Sets per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1year	Customized Support:	OEM
Application:	Food And Beverage Industry, Pharmaceutical Industry	Horsepower:	0.2
Power Source:	Electric	Pressure:	Low Pressure
Structure:	Peristaltic Pump	Cable Length:	1.5m
Outlet Size:	6.4mm	Voltage:	220v 110v
Power:	40w	Motor:	Stepper Motor
Product:	High Accurancy Glue Transfer Peristaltic Pumps For Packing Machine	Brand:	Huiyu
Flow Rate:	0.07-380ml/min	Power Supply:	AC 220V ±20%
Motor Speed:	0.1-100rpm	Dimension(LxWxH):	243X151X157 (mm)
Drive Weight:	3.5 Kg	Usage:	Water,fluid,reagent,oil,detergent
Fuel:	Electricity	Port:	Beijing,Tianjin,Qingdao

Warranty:	1year
Customized Support:	OEM
Application:	Food And Beverage Industry, Pharmaceutical Industry
Horsepower:	0.2
Power Source:	Electric
Pressure:	Low Pressure
Structure:	Peristaltic Pump
Cable Length:	1.5m
Outlet Size:	6.4mm
Voltage:	220v 110v
Power:	40w
Motor:	Stepper Motor
Product:	High Accurancy Glue Transfer Peristaltic Pumps For Packing Machine
Brand:	Huiyu
Flow Rate:	0.07-380ml/min
Power Supply:	AC 220V ±20%
Motor Speed:	0.1-100rpm
Dimension(LxWxH):	243X151X157 (mm)
Drive Weight:	3.5 Kg
Usage:	Water,fluid,reagent,oil,detergent
Fuel:	Electricity
Port:	Beijing,Tianjin,Qingdao

Description

high accuracy glue transfer peristaltic pumps for packing machine

high accuracy glue transfer peristaltic pumps for packing machine

Product Description

high accuracy glue transfer peristaltic pumps for packing machine 0

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet

Pump head	model	Available tubing	flow rate range (ml/min)
	YZ15-1A	13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm	0.07-380ml/min
	YZ25-1A	15#,24# wall thickness 2.5mm	0.2-270ml/min
	DG-1A	ID≤3.17mm; wall thickness 0.8-1.0mm; A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG-1B		0.0002-32ml/min
	DG-2A		0.00025-48ml/min Single channel
	DG-2B		0.0002-32ml/min Single channel
	DG-4A		0.00025-48ml/min Single channel
	DG-4B		0.0002-32ml/min Single channel

high accuracy glue transfer peristaltic pumps for packing machine 1

Operation video link on Youtube for reference:

https://youtu.be/y6sA2m8JKAE

Best selling standard perisaltic pump BT100J+YZ15

Click the photo for technical details

Industrial perisaltic pump BT600J+YZ35

Click the photo for technical details

Laboratory syringe pump LST01-1A

click the photo for technical details

Micro plunger pump

click the photo for technical details

silicone tube

Packaging & Shipping

high accuracy glue transfer peristaltic pumps for packing machine 12

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Suitable pump head

high accuracy glue transfer peristaltic pumps for packing machine 14

OEM option

high accuracy glue transfer peristaltic pumps for packing machine 15

Accessories

high accuracy glue transfer peristaltic pumps for packing machine 16

CE certificate

high accuracy glue transfer peristaltic pumps for packing machine 17

high accuracy glue transfer peristaltic pumps for packing machine 18
