Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid, CT100-1A Touch screeen Peristaltic Pump
Model Number: CT100-1A, CT100-1A
Payment & Shipping Terms
Price: $290.00/sets >=1 sets
Packaging Details: BT100j-1A Basic Infiltration Liposuction Peristaltic Pump
packing:1set in 1 carton , size: 39cm x 22cm x 24cm
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control, Chemical Dosing ,transfer ,filling,dispensing |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
6.4mm |
Voltage: |
110v 220v |
Power: |
30w |
Motor: |
Stepper Motor |
Motor Speed: |
1 To 200 Rpm, Reversible |
Flow Rate: |
0.00025-900ml/min |
Usage: |
Medical, Biological ,chemical,laboratory |
Power Supply: |
AC 90V-260 V 50/60 Hz |
Power Consumption: |
≤30 W |
Dimensions :: |
243x151x157 (mm) |
Port: |
Beijing |
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Pharmaceutical Industry, Wastewater Transport And Flood Control, Chemical Dosing ,transfer ,filling,dispensing |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
6.4mm |
Voltage: |
110v 220v |
Power: |
30w |
Motor: |
Stepper Motor |
Motor Speed: |
1 To 200 Rpm, Reversible |
Flow Rate: |
0.00025-900ml/min |
Usage: |
Medical, Biological ,chemical,laboratory |
Power Supply: |
AC 90V-260 V 50/60 Hz |
Power Consumption: |
≤30 W |
Dimensions :: |
243x151x157 (mm) |
Port: |
Beijing |
product description

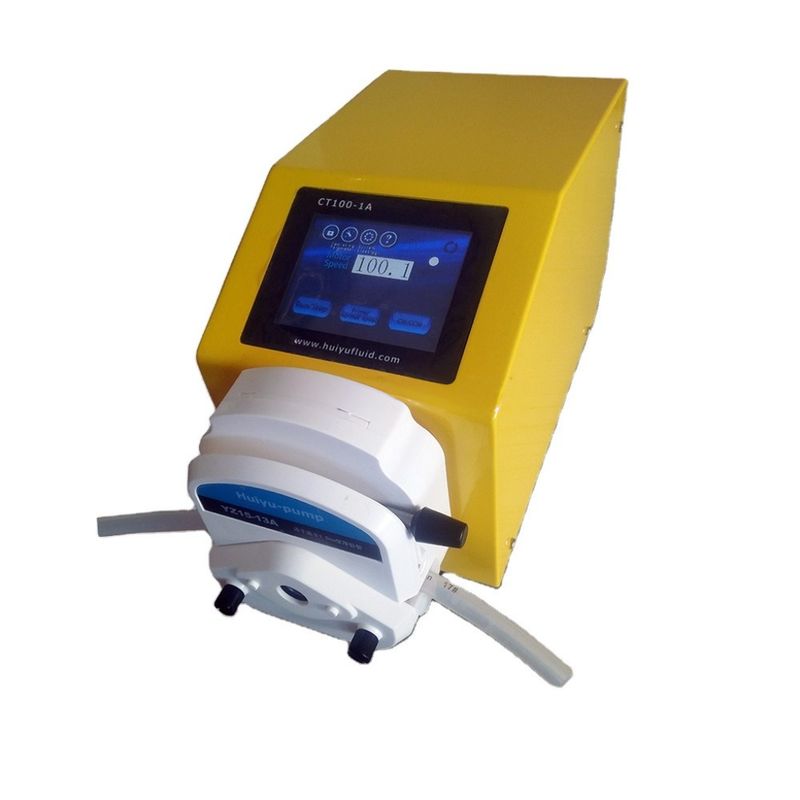

The metal casing design, the buttons and display are designed with advanced ergonomics and at an angle of 30° to the horizontal. Acid and alkali resistant, corrosion resistant.
In English and Chinese, the speed is increased to 200 rpm and the touch screen is controlled.
It can realize simple dispensing, timing quantitative, continuous packaging, flow testing and other functions.
Pump screen
Features
Touch screen operation
Start and stop functions
Clockwise and counterclockwise operation, LED indication operation
Speed adjustment function (increasing speed and deceleration), which can display the speed and direction
Full speed function (to achieve fast filling and draining of pipes) Communication with the host computer (computer)
External control function (standard current, voltage, pulse signal control speed; level signal control start and stop, direction)
Power-down memory function
Leakage and overheat protection
Simple dispensing function, which can set running time, intermittent time, running times, realize timing quantitative, continuous packing, flow test, etc.
With suckback function, effectively prevent liquid dripping
Technical Parameters
Speed range: 0.1-200 rpm, resolution 0.1 rpm
Timing running time: 0.1~999 seconds/min/hour
Intermittent time: 0.1~999 seconds/min/hour
Number of cycles: 0~999 times (0 is an infinite loop)
External control interface: start-stop control, direction control, speed control (0-5V/0-10V, 4-20mA, 0-10kHz)
Communication method: RS485 half duplex
Applicable power supply: suitable for a wide range of voltages 90-260V AC, 50/60Hz
Maximum power: <40W
Working environment: ambient temperature 0-40 ° C, relative humidity <80%
Weight: 2.5kg
Dimensions: 228 × 130 × 160 (length × width × height) mm
Protection level: IP31
| Pump head | Model | Available tubing | flow rate range (ml/min) |
| YZ15-13A | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm | 0.07-900ml/min | |
| YZ25-13A | 15#, 24# wall thickness:2.5mm | 0.2-650ml/min | |
| DG10-1A | wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers | 0.00025-70ml/min | |
| DG10-1B | 0.0002-50ml/min | ||
| DG10-2A | 0.00025-70ml/min (Single channel) | ||
| DG10-2B | 0.0002-50ml/min (Single channel) | ||
| BZ25-lA | 24# wall thickness:2.5mm | 0.26-650ml/min |
Tubing details
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
