Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Model Number: WT600J-1A
Payment & Shipping Terms
Price: $460.00 - $760.00/sets
Packaging Details: water pump adjustable flow rate 6l/min peristaltic pump
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.05 |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Outlet Size: |
6.4mm |
Voltage: |
110v 220v |
Power: |
40w |
Motor: |
Stepper Motor |
Product: |
Water Pump Adjustable Flow Rate 6l/min Peristaltic Pump |
Brand: |
Huiyu |
Flow Rate: |
4.2-6000ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
60-600rpm |
Dimension(LxWxH): |
276X184X175 (mm) |
Drive Weight: |
5.2kg |
Usage: |
Water,fluid,reagent,oil,detergent |
Fuel: |
Electricity |
Port: |
Beijing |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
0.05 |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Outlet Size: |
6.4mm |
Voltage: |
110v 220v |
Power: |
40w |
Motor: |
Stepper Motor |
Product: |
Water Pump Adjustable Flow Rate 6l/min Peristaltic Pump |
Brand: |
Huiyu |
Flow Rate: |
4.2-6000ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
60-600rpm |
Dimension(LxWxH): |
276X184X175 (mm) |
Drive Weight: |
5.2kg |
Usage: |
Water,fluid,reagent,oil,detergent |
Fuel: |
Electricity |
Port: |
Beijing |

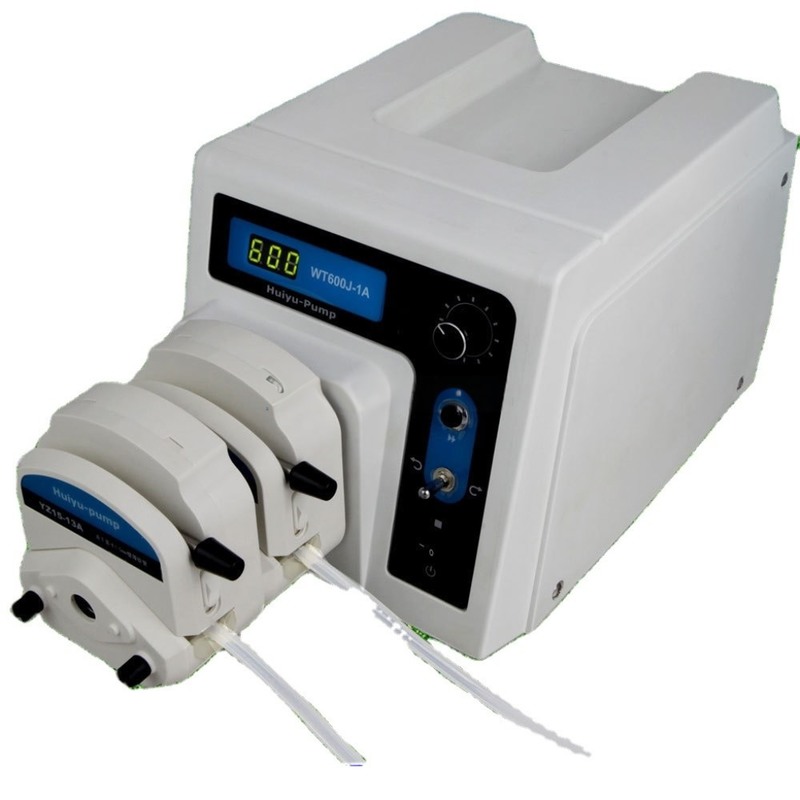

water pump adjustable flow rate 6l/min peristaltic pump
Tchnical paramaeter
Speed: 60-600 rpm reversible
Speed precision: 1 rpm
speed accuracy: ≤±1%
Speed control: toggle switch and rotary encoded switch, accept external control and communication control
Display: Three digital LED display
External Control: Start/Stop, CW/CCW, Speed Control (0-5V, 0-10V, 0-20mA, and 1-10kHz are optional)
Communication interface: RS485
Memory function: repower the pump, user can choose whether to continue in accordance with the state before the power-down
Prime button for fast filling and emptying
Power Supply: AC 220V ±20%/200W
Operating Condition: Temperature: 0-40℃, Relative Humidity: <80%
IP rating: IP31
Drive Weight: 5.2 Kg
Technical Data Sheet
| Pump head | Model | Available tubing | flow rate range (ml/min) |
| YZ15-13A | 13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm | 4.2-2200ml/min | |
| 2* YZ15-13A | single channel 4.2-2200ml/min | ||
| YZ25-13A | 15#,24# wall thickness 2.5mm | 100-1600ml/min | |
| 2* YZ25-13A | single channel 100-1600ml/min | ||
| BZ25-1A | 24# wall thickness 2.5mm | 174-1600ml/min | |
| KZ25-1A | 15#,24#,35#,36# | 200-6000ml/min |
