Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Certification: ce
Model Number: BT300J-1A
Payment & Shipping Terms
Price: $400.00/sets 1-4 sets
Packaging Details: 1 peristaltic pump in 1carton
Supply Ability: 100 Set/Sets per Week
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
30w |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump |
Cable Length: |
1m |
Outlet Size: |
7.9m |
Voltage: |
220v Or 110v |
Power: |
30w, Electric |
Product: |

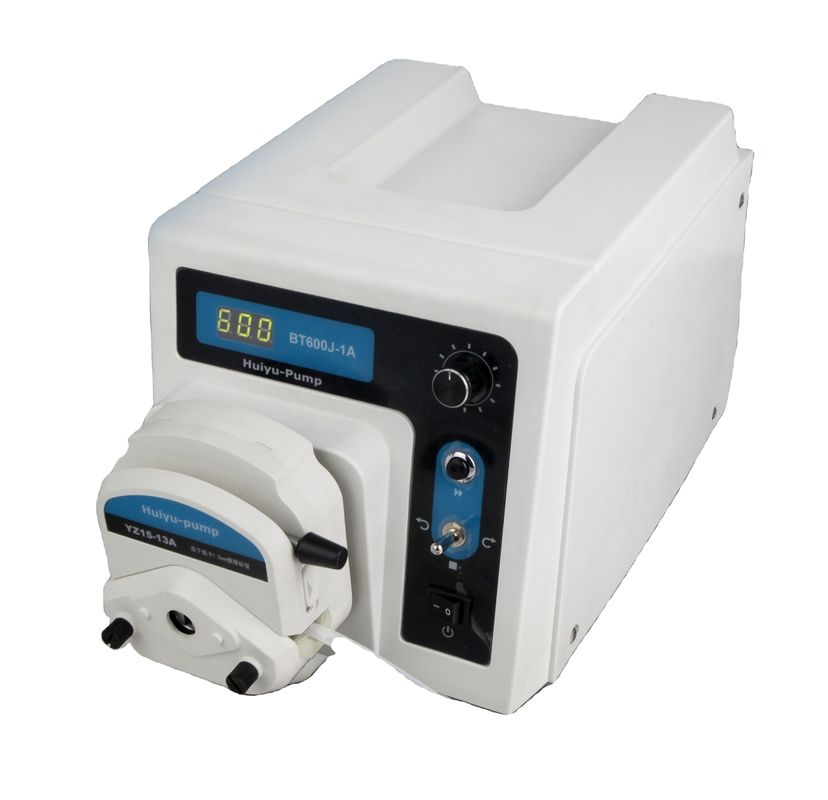

Huiyu BT600j Basic Peristaltic Pump With Stepper Motor |
Brand: |
Huiyu Fluid |
Flow Rate: |
0.07-1140ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
0.1-300rpm |
Dimension(LxWxH): |
276x184x175 (mm) |
Drive Weight: |
3.5 Kg |
Port: |
Beijing |
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment |
Horsepower: |
30w |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump |
Cable Length: |
1m |
Outlet Size: |
7.9m |
Voltage: |
220v Or 110v |
Power: |
30w, Electric |
Product: |
Huiyu BT600j Basic Peristaltic Pump With Stepper Motor |
Brand: |
Huiyu Fluid |
Flow Rate: |
0.07-1140ml/min |
Power Supply: |
AC 220V ±20% |
Motor Speed: |
0.1-300rpm |
Dimension(LxWxH): |
276x184x175 (mm) |
Drive Weight: |
3.5 Kg |
Port: |
Beijing |
Technical parameter
Speed: 1 to 300 rpm, reversible
Speed resolution: 1 rpm
Running direction: cw/ccw
Display: 3-digit LED displays current speed
Analog interface: Start/stop and cw/ccw control, 0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control
Communication interface: RS485
Power supply: AC 90 - 260V 50/60 Hz
Power consumption: < 50W
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
Drive weight: 3.5 kg
Dimensions (L×W×H): 276×184×175 (mm)
IP rating: IP 31
Technical Data Sheet
| Pump head | model | Available tubing | flow rate range (ml/min) |
| YZ15-l3A | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm | 0.07-1140ml/min | |
| YZ25-l3A | 15#, 24# wall thickness:2.5mm | 1.7-810ml/min | |
| BZ25-lA | 24# wall thickness:2.5mm | 0.26-780ml/min |
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
