Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Model Number: JL350J-1A
Payment & Shipping Terms
Price: $1,580.00/sets >=1 sets
Packaging Details: peristaltic pump
packed in polywood case with foam plastic
Supply Ability: 100 Set/Sets per Week
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Drinking Water Treatment, Food And Beverage Industry, Pharmaceutical Industry, Sea Water Sampling , Pulp Filling |
Horsepower: |
0.5 |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v 380v, AC 220V ±20% |
Power: |
400w |
Motor: |
AC Motor |
Product Name: |

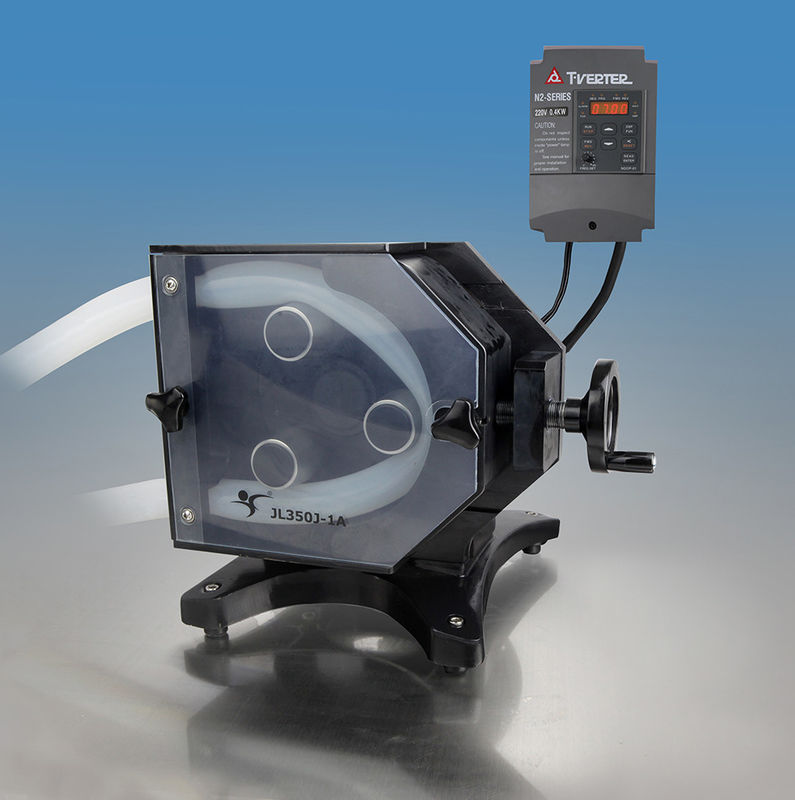

Industrial Big Flow Sea Water Peristaltic Pump |
Drive Weight: |
32 Kg |
Pressure: |
0.2mpa 2bar 30psi |
Feature: |
Large Flow |
Flow Rate: |
1.3-35Liter/min |
Motor Speed: |
30 To 350 Rpm, Reversible |
Dimension: |
417X401X321 (mm) |
Theory: |
Peristaltic Pump |
Port: |
Beijing,Tianjin,Qingdao |
Warranty: |
1year |
Customized Support: |
OEM |
Application: |
Drinking Water Treatment, Food And Beverage Industry, Pharmaceutical Industry, Sea Water Sampling , Pulp Filling |
Horsepower: |
0.5 |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v 380v, AC 220V ±20% |
Power: |
400w |
Motor: |
AC Motor |
Product Name: |
Industrial Big Flow Sea Water Peristaltic Pump |
Drive Weight: |
32 Kg |
Pressure: |
0.2mpa 2bar 30psi |
Feature: |
Large Flow |
Flow Rate: |
1.3-35Liter/min |
Motor Speed: |
30 To 350 Rpm, Reversible |
Dimension: |
417X401X321 (mm) |
Theory: |
Peristaltic Pump |
Port: |
Beijing,Tianjin,Qingdao |
| Drive | Pump head | Available tubing | flow rate range (ml/min) | weight(kg) |
| JL350J-1A | KZ48/63 | 88# | 1.3-15 | 32 |
| 92# | 3-35 |
Flow rate chart
Mounting drawing
Tubing loading
