Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid, peristaltic pump
Model Number: BT100J-1A, BT100J-1A
Payment & Shipping Terms
Price: $245.00/sets >=1 sets
Packaging Details: dual channel precision peristaltic pump
packing:1set in 1 carton , size: 39cm x 22cm x 24cm
Supply Ability: 1000 Set/Sets per Week Miniature pump for medical diagnostic instrument
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Chemical Dosing ,transfer ,filling,dispensing |
Power Source: |
Electric |
Pressure: |
Low Pressure, Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v 110v |
Motor Speed: |
1 To 100 Rpm, Reversible |
Flow Rate: |
0.00025-380ml/min |
Power Supply: |
AC 90V-260 V 50/60 Hz |
Power Consumption: |
≤30 W |
Dimensions :: |
243x151x157 (mm) |
Port: |
Beijing |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Chemical Dosing ,transfer ,filling,dispensing |
Power Source: |
Electric |
Pressure: |
Low Pressure, Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
220v 110v |
Motor Speed: |
1 To 100 Rpm, Reversible |
Flow Rate: |
0.00025-380ml/min |
Power Supply: |
AC 90V-260 V 50/60 Hz |
Power Consumption: |
≤30 W |
Dimensions :: |
243x151x157 (mm) |
Port: |
Beijing |

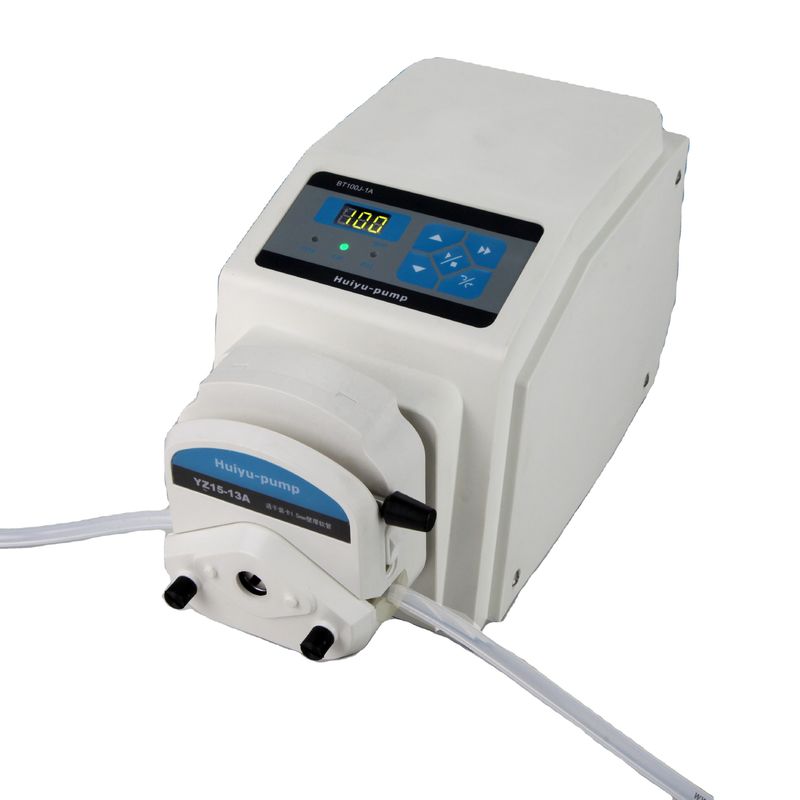

peristaltic pump for diagnostic instrument
Technical parameter
Speed: 0.1 to 100 rpm, reversible
Speed precision: 0.1 rpm
Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
Display: 3-digit LED displays current rpm
External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
Communication interface: RS485
Power supply: AC 90V-260 V 50/60 Hz
Power consumption: ≤30 W
Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
Drive weight: 2.5 kg
Dimensions (L×W×H): 243×151×157 (mm)
IP rating: IP 31
Technical Data Sheet
| Pump head | Model | Available tubing | flow rate range (ml/min) |
| YZ15-l3A | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm | 0.07-380ml/min | |
| YZ25-l3A | 15#, 24# wall thickness:2.5mm | 0.2-270ml/min | |
| DG10-lA | wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers | 0.00025-48ml/min | |
| DG10-1B | 0.0002-32ml/min | ||
| DG10-2A | 0.00025-48ml/min (Single channel) | ||
| DG10-2B | 0.0002-32ml/min (Single channel) | ||
| BZ25-lA | 24# wall thickness:2.5mm | 0.26-260ml/min |
Tubing details
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
1 year warranty for all of our pumps
