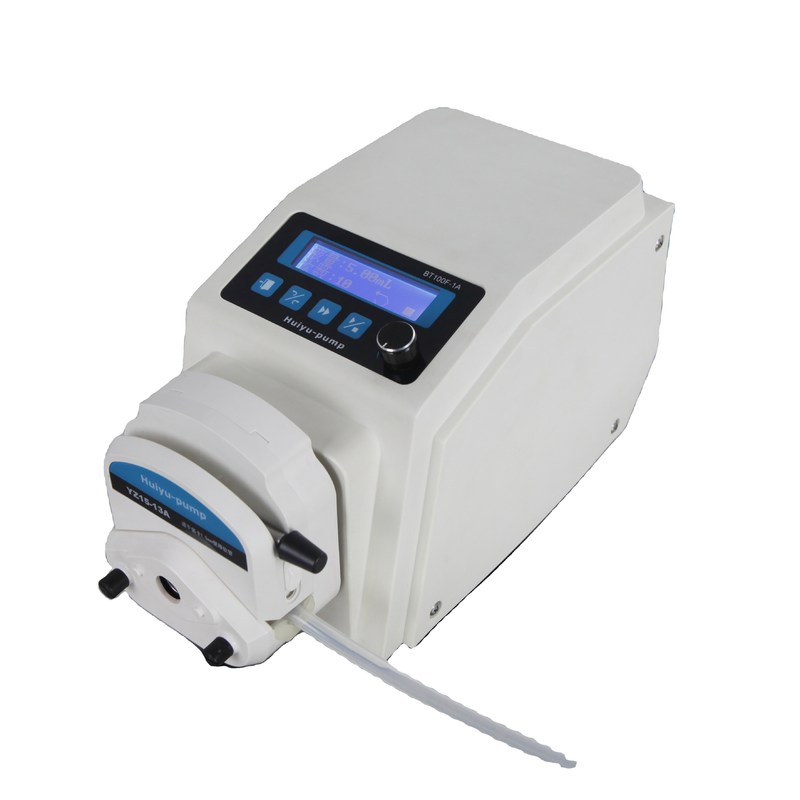

BT100F automatic laboratory water liquid dispenser

Name: BT100F automatic laboratory water liquid dispenser
Brand: Huiyuweiy(Beijing) Fluid Equipment Co., Ltd.
SKU: BT100F-1A
Price: 178.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu

Model Number: BT100F-1A

Payment & Shipping Terms

Price: $355.00/sets >=1 sets

Packaging Details: BT100F automatic laboratory liquid dispenser
with foam plastic

Supply Ability: 100 Set/Sets per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1year	Customized Support:	OEM
Application:	Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment	Power Source:	Electric
Pressure:	Low Pressure	Structure:	Reciprocal
Cable Length:	1.5m	Outlet Size:	6.4mm
Voltage:	110v 220v	Power:	40w
Motor:	Stepper Motor	Product:	BT100F Automatic Laboratory Liquid Dispenser
Brand:	Huiyu	Flow Rate:	0.07-380ml/min
Power Supply:	AC 220V ±20%	Motor Speed:	0.1-100rpm
Dimension(LxWxH):	243X151X157 (mm)	Drive Weight:	3.5 Kg
Usage:	Water,fluid,reagent,oil,detergent	Fuel:	Electricity
Pressure:	0.2mpa 2bar	Port:	Beijing,Tianjin,Qingdao

Warranty:	1year
Customized Support:	OEM
Application:	Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment
Power Source:	Electric
Pressure:	Low Pressure
Structure:	Reciprocal
Cable Length:	1.5m
Outlet Size:	6.4mm
Voltage:	110v 220v
Power:	40w
Motor:	Stepper Motor
Product:	BT100F Automatic Laboratory Liquid Dispenser
Brand:	Huiyu
Flow Rate:	0.07-380ml/min
Power Supply:	AC 220V ±20%
Motor Speed:	0.1-100rpm
Dimension(LxWxH):	243X151X157 (mm)
Drive Weight:	3.5 Kg
Usage:	Water,fluid,reagent,oil,detergent
Fuel:	Electricity
Pressure:	0.2mpa 2bar
Port:	Beijing,Tianjin,Qingdao

Description

BT100F automatic laboratory water liquid dispenser

BT100F automatic laboratory water liquid dispenser

Product Description

BT100F automatic laboratory water liquid dispenser 0

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet

Pump head	model	Available tubing	flow rate range (ml/min)
	YZ15-1A	13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm	0.07-380ml/min
	YZ25-1A	15#,24# wall thickness 2.5mm	0.2-270ml/min
	DG-1A	ID≤3.17mm; wall thickness 0.8-1.0mm; A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG-1B		0.0002-32ml/min
	DG-2A		0.00025-48ml/min Single channel
	DG-2B		0.0002-32ml/min Single channel
	DG-4A		0.00025-48ml/min Single channel
	DG-4B		0.0002-32ml/min Single channel

BT100F automatic laboratory water liquid dispenser 1

Best selling standard perisaltic pump BT100J+YZ15

Click the photo for technical details

BT100F automatic laboratory water liquid dispenser 3

Industrial perisaltic pump BT600J+YZ35

Click the photo for technical details

Laboratory syringe pump LST01-1A

click the photo for technical details

Micro plunger pump

click the photo for technical details

Packaging & Shipping

BT100F automatic laboratory water liquid dispenser 10

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Suitable pump head

BT100F automatic laboratory water liquid dispenser 12

OEM option

BT100F automatic laboratory water liquid dispenser 13

Accessories

BT100F automatic laboratory water liquid dispenser 14

CE certificate

BT100F automatic laboratory water liquid dispenser 15
