Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Certification: RoHS
Model Number: BT600J-1A
Payment & Shipping Terms
Price: $350.00 - $600.00/sets
Packaging Details: carton
Supply Ability: 100 Set/Sets per Week
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
600rpm |
Power Source: |
Electric |
Pressure: |
0.2MPA, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
AC90V-260V |
Power: |
100W, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Product: |
Beijing Huiyu 2280ml Liquid Peristaltic Filling Pump |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
600rpm |
Power Source: |
Electric |
Pressure: |
0.2MPA, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
AC90V-260V |
Power: |
100W, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Product: |
Beijing Huiyu 2280ml Liquid Peristaltic Filling Pump |

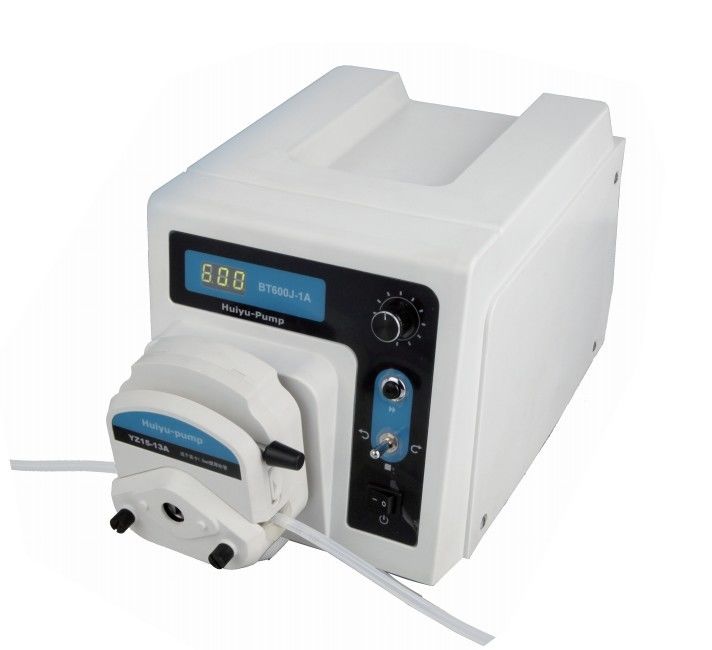

Beijing Huiyu 2280ml liquid Peristaltic Filling Pump
Technical parameter
Speed: 1 to 600 rpm, reversible
Speed resolution: 1 rpm
Speed control: rotary encoder switch, acceptable external control and communication control
Display: 3-digit LED displays current speed
Analog interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
Communication interface: RS485
Memory function: Storing the running parameters automatically
Prime button for fast filling and emptying
Dimensions (L×W×H): 285×207×180 (mm)
Power supply: AC 90V-260V/100W
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
IP rating: IP 31
Drive weight: 3.8 kg
Technical Data Sheet
| Pump head | Pump head model | Available tubing | flow rate range (ml/min) |
| YZ15-l3A | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm | 0.07-2200ml/min | |
| YZ25-l3A | 15#, 24# wall thickness:2.5mm | 1.7-1600ml/min | |
| BZ25-lA | 24# wall thickness:2.5mm | 2.9-1600ml/min |
