Product Details
Place of Origin: Hebei, China
Brand Name: Huiyu

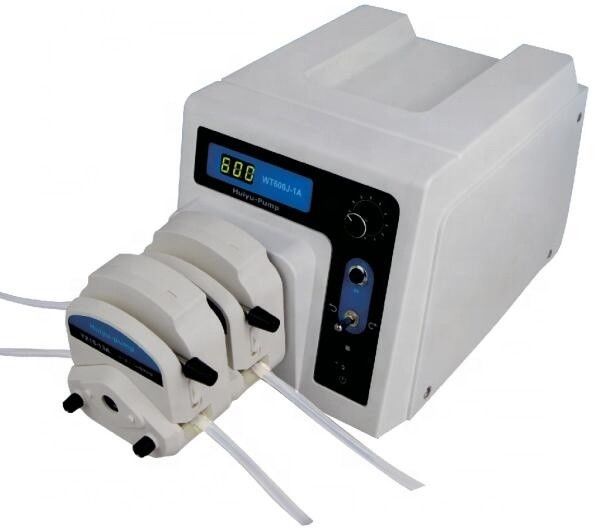

Model Number: WT600J-21A
Payment & Shipping Terms
Price: $500.00 - $1,000.00/sets
Packaging Details: 1 pump in 1 carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Laboratory |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Type: |
WT600J-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
6000ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Laboratory |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Type: |
WT600J-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
6000ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Motor speed | 60-600rpm |
Motor speed precision | ≤±1% |
motor speed resolution | 1.0rpm |
Operation | knob and key,external signal,RS 485 communication |
Display | 3 digit LED to display motor speed RPM |
Power off Memory function | work as the previous status when re-powered |
EX-control | start/stop,cw/ccw,speed control(0-5v/0-10v,0-10kHz singals) |
Communication port | RS485 |
Power supply | AC220V±20%/200W |
Max speed function | Max speed key for prompt emptying,filling and cleaning |
Working environment | 0-40℃ |
Measurement | 285x210x186(LXWXH)mm |
Weight | 3.8KG |
IP rating | IP31 |
1.Drive | 2.Pump Head | 3. 2 meters silicon tube | 4. power cord | 5. manual pamphlet | ||||
Warranty:1 year |
