Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Certification: RoHS
Model Number: JL350J-1A
Payment & Shipping Terms
Price: $1,000.00 - $1,850.00/sets
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
350rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
AC220V±10% |
Power: |
400W, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
350rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Reciprocal |
Voltage: |
AC220V±10% |
Power: |
400W, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |

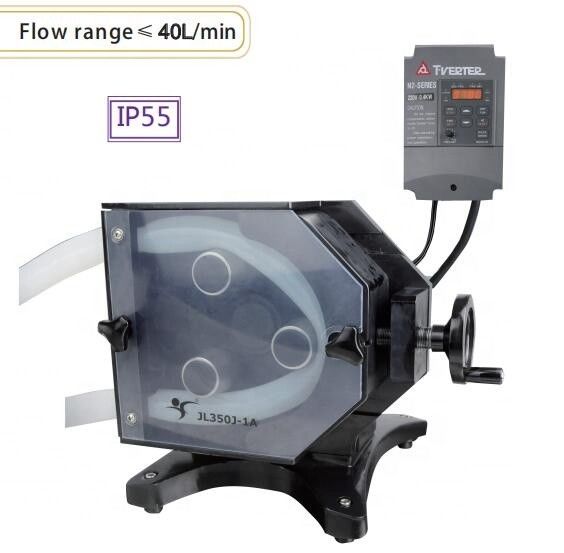

Standard peristaltic pump JL350J-1A Flow rate≤40L/min
High IP rating:55
Features:
Technical parameter
Speed: 30 to 350rpm, cw/ccw reversable
Speed resolution: 0.6 rpm
Operation: membrane key,external signal and communication.
Display: frequency convertor LED
Motor speed signal input: 0 to 5 V, 0 to 10 V, 4 to 20 mA signals
Start/stop signal input:switching volume control
CW/CCW signal input: switching volume control
Communication port: RS485 and RS232
Dimensions (L×W×H): 417X401X321 (mm)
Power supply: AC 220V±10%
Power consumption:400aw
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
IP rating: IP 55
Drive weight: 32 kg
Technical Data Sheet
| Pump Drive | Pump head model | Available tubing | flow rate range (ml/min) | Weight |
| JL350J-1A | kz48/63 | 88# | 1.3-15 | 32kg |
| 92# | 3-40 |
