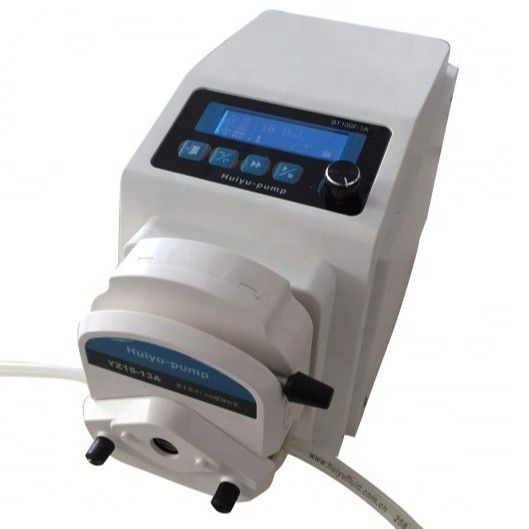

Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: BT100F-1A
Payment & Shipping Terms
Price: $500.00 - $700.00/sets
Packaging Details: 1 pump in 1 carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Laboratory |
Horsepower: |
100rpm |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump |
Voltage: |
AC90V-260V |
Power: |
40W |
Type: |
BT100F-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
380ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Laboratory |
Horsepower: |
100rpm |
Power Source: |
Electric |
Pressure: |
0.2mpa |
Structure: |
Peristaltic Pump |
Voltage: |
AC90V-260V |
Power: |
40W |
Type: |
BT100F-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
380ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Motor speed | 0.1-100rpm,resolution:0.1rpm |
Filling volume range | 0.01ml-9.99L |
Filling time | 1-9999 times,"0" unlimited recycle |
Interval time | 0.1s-99.9min, resolution:0.1s |
Flow calibration time | 0.5s-30min |
Operation | membrane key and knob |
External control | 0-5v,0-10v,4-20mA,0-10kHz signals |
Communication | RS485 |
Output signal | start/stop,cw/ccw,speed, OC gate output |
Working environment | 0-40℃，relative humidity ＜80％ |
Weight | 3.5Kg |
Measurement | 241x150x158（LXWXH）mm |
Power consumption | 40W |
1.Drive | 2.Pump Head | 3. 2 meters silicon tube | 4. power cord | 5. manual pamphlet | ||||
Warranty:1 year | ||||||||
