Product Details
Place of Origin: Hebei, China
Brand Name: Huiyu
Certification: RoHS

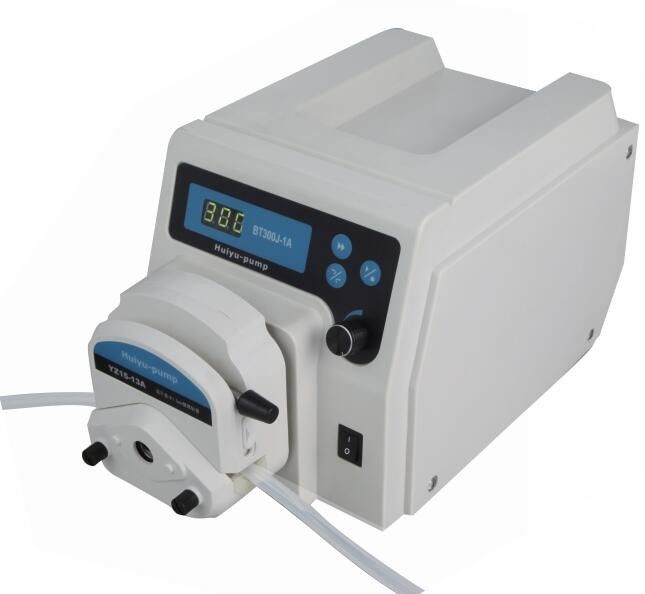

Model Number: BT300J-1A
Payment & Shipping Terms
Price: $100.00 - $500.00/sets
Packaging Details: 1 pump in 1 carton with foam plastic
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Laboratory |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Type: |
BT300J-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
1140ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Laboratory |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Type: |
BT300J-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
1140ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Motor speed | 1-300rpm,resolution:1rpm |
Motor running direction | cw(green LED)/ccw(blue LED),reversable |
Operation | by knob and membrane key |
Display | 3 digit LED to display motor speed RPM |
EX-control port | start/stop,cw/ccw,speed control(0-5v/0-10v voltage signal,4-20mA,0-10kHz singal are optional) |
Communication port | RS485 |
Power supply | AC90V-260V,50/60Hz |
Max power consumption | 50w |
Working environment | 0-40℃，relative humidity＜80％ |
Measurement | 276x184x175（LXWXH）mm |
Weight | 3.5KG |
IP rating | IP31 |
1.Drive | 2.Pump Head | 3. 2 meters silicon tube | 4. power cord | 5. manual pamphlet | ||||
Warranty:1 year | ||||||||
