Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Certification: RoHS
Model Number: BT600J-1A
Payment & Shipping Terms
Price: $350.00 - $600.00/sets
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Reciprocal |
Motor: |
Step Motor |
Motor Speed: |
1-600 Rpm |
Max Flow Rate: |
2200ml/min |
Power Supply: |
AC220V±20%/200w |
Communication Port: |
RS485 |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Wastewater Treatment |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Reciprocal |
Motor: |
Step Motor |
Motor Speed: |
1-600 Rpm |
Max Flow Rate: |
2200ml/min |
Power Supply: |
AC220V±20%/200w |
Communication Port: |
RS485 |

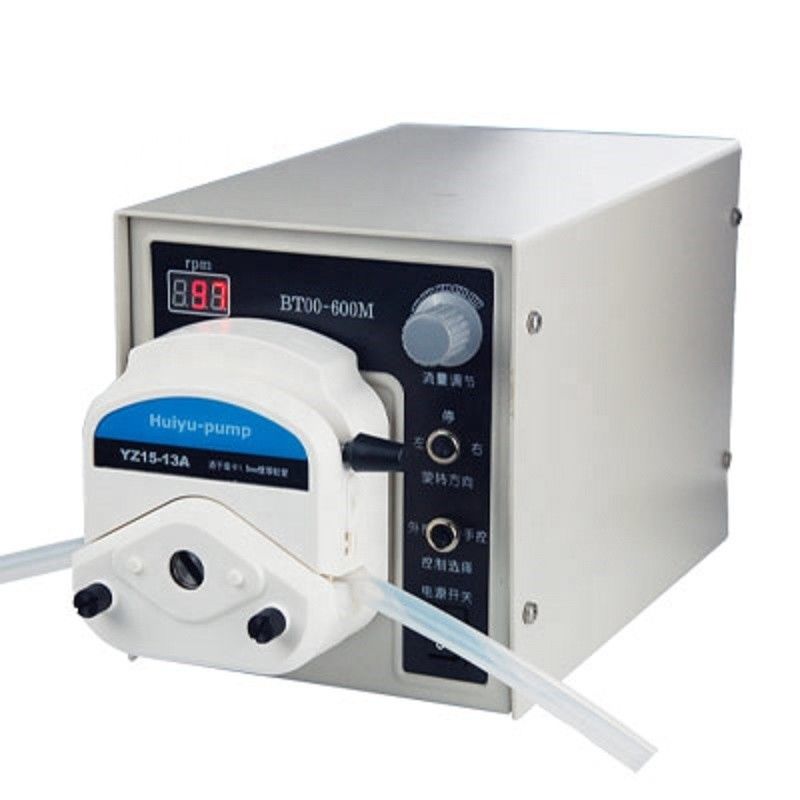

Beijing Huiyu 2280ml liquid Peristaltic Filling Pump
Technical parameter
Product description
The stepping motor is subdivided and driven, the speed is less than or equal to 600 rpm, and the plastic-sprayed metal shell is stable and generous, which can be used in the harsher industrial production environment.
Features
MAX key: with filling and emptying functions
Rotation speed can be adjusted manually or controlled by external control interface
Power-down memory function: After power-on again, it will work according to the state of the last power-off
With RS485 communication function, external control analog quantity and pulse control function
Technical index
Speed range: 1-600 rpm forward and reverse reversible
Speed resolution: 1 rpm
Control mode: knob combined with button, support external signal control and communication control
Display mode: 3-digit LED speed display
External control function: start-stop control, direction control, speed control ((0-5V, 0-10V, 0-10KHZ optional)
Communication interface: RS485
Power-down memory: After power-on, it can continue to work according to the state before power-off
Full speed function: One key to control full speed work, used for filling, emptying, etc.
Dimensions (L×W×H): 237×148×170mm
Applicable power supply: AC 90V-260V
Work rate: ≤100W
Working environment: temperature 0℃-40℃, relative humidity <80%
Degree of protection: IP31
Weight: 3.8Kg
