Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid
Certification: RoHS
Model Number: BT300L-1A
Payment & Shipping Terms
Price: $450.00 - $900.00/sets
Supply Ability: 100 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC220V±20% |
Power: |
55w, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Product: |
High Precision Liquid Dispensing Multi Peristaltic Hose Pump |
Brand: |
Huiyu Fluid |
Power Supply: |
AC 220V ±20% |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Metering |
Horsepower: |
300rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC220V±20% |
Power: |
55w, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Product: |
High Precision Liquid Dispensing Multi Peristaltic Hose Pump |
Brand: |
Huiyu Fluid |
Power Supply: |
AC 220V ±20% |

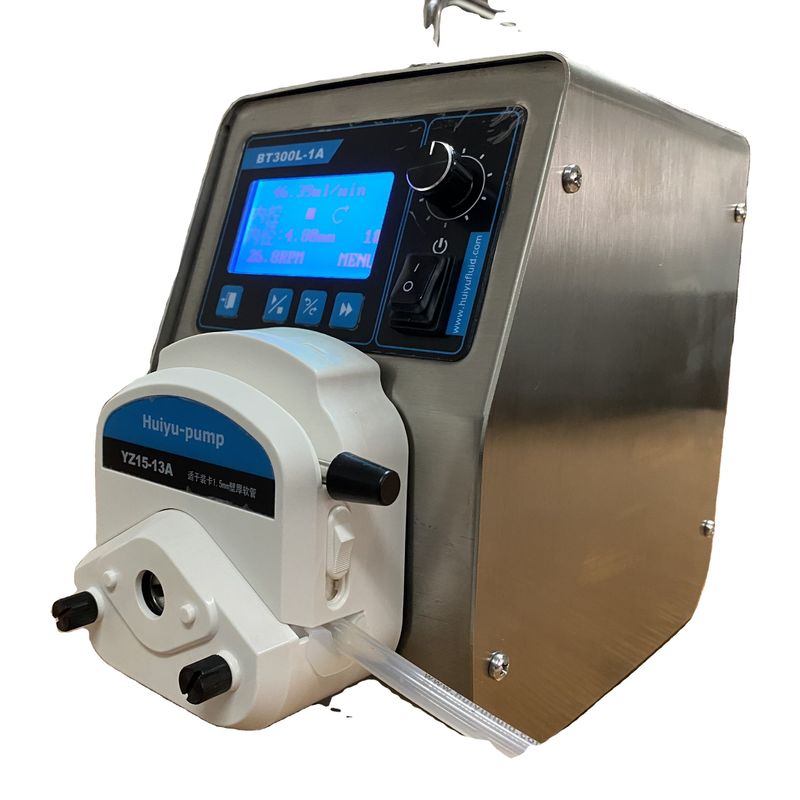

RS485 flow rate peristaltic pump max flow rate 760ml/min
BT300L-1A
Max flow rate:760ml/min
Product description
Using 128×64 dot matrix large-screen LCD display
The flow and speed of the pump can be displayed at the same time
With flow correction function
The operation is completed by the cooperation of the membrane button and the rotary coding switch
Features
Membrane buttons can control start and stop, direction and speed
Can quickly fill and empty function
It can communicate with the host computer
External control signal can control start and stop, direction and speed
Power-down memory function; leakage protection function; overheating protection function
Different pump heads can be replaced
Technical parameter
Speed range: 1-300rpm, resolution 0.1 rpm
External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)
Display mode: graphic dot matrix liquid crystal display
Communication method: RS485 half duplex
Applicable power supply: AC 220V ±20% 50~60Hz
Power consumption: ≤55W
Working environment: ambient temperature 0℃~40℃ relative humidity<80%
Dimensions: 202×153×260 (length×width×height)mm
Drive weight: 5.5kg
Degree of protection: IP31
Dimensions
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
