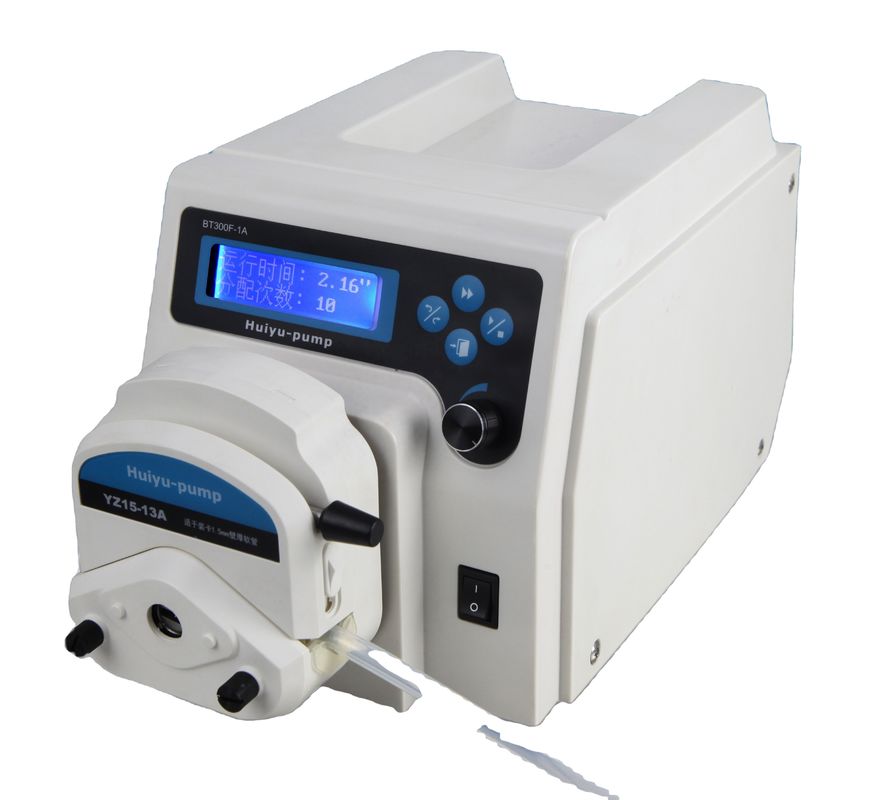

high precision and easy operation metering pump,lubrication pump, dosing pump

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu

Certification: RoHS

Model Number: BT300F-1A

Payment & Shipping Terms

Price: $540.00 - $900.00/sets

Supply Ability: 100 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:
Warranty:
1 Years
Customized Support:
OEM
Application:
Food And Beverage Industry, Pharmaceutical Industry, Metering
Horsepower:
300rpm
Power Source:
Electric
Pressure:
0.2Mpa, Low Pressure
Structure:
Reciprocal
Power:
Electric
Standard Or Nonstandard:
Nonstandard
Product:
Biological Reagent Dosing Peristaltic Pump
Brand:
Huiyu
Warranty:
1 Years
Customized Support:
OEM
Application:
Food And Beverage Industry, Pharmaceutical Industry, Metering
Horsepower:
300rpm
Power Source:
Electric
Pressure:
0.2Mpa, Low Pressure
Structure:
Reciprocal
Power:
Electric
Standard Or Nonstandard:
Nonstandard
Product:
Biological Reagent Dosing Peristaltic Pump
Brand:
Huiyu
Description
high precision and easy operation metering pump,lubrication pump, dosing pump



Product Description

   biological reagent dosing peristaltic pump

max flow rate :1140ml/min
high precision and easy operation metering pump,lubrication pump, dosing pump 0
Technical parameter
    Speed: 1-300 rpm, reversible Speed precision: 1 rpm

     Speed control: membrane keypad and rotary encoded switch
     Display: LCD displays flow rate, speed or dispensing mode
     Copy number: 1 to 999, 0 means unlimited cycle
     Dispensing volume: 0.1 mL to 99.9 L
     Pause time : 1 to 999 sec
     Back suction angle: 0 to 360°, 18° increments
     External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
     Communication: RS485
     Output signal: start/stop, direction output and speed, OC gate output mode
     Power: 90-260V AC,50/60Hz
     Power consumption: < 50W
     Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
     Dimensions (L × W × H): 276×184×175 (mm)
     Drive Weight: 3.5 kg

Technical parameters
Pump head  model Available tubing flow rate range (ml/min)
  YZ15-lA 13#, 14#, 19#, 16#, 25#, 17#, 18#      wall thickness:1.5mm 0.07-1140ml/min
YZ25-lA 15#, 24#      wall thickness:2.5mm 1.7-810ml/min





  high precision and easy operation metering pump,lubrication pump, dosing pump 1high precision and easy operation metering pump,lubrication pump, dosing pump 2high precision and easy operation metering pump,lubrication pump, dosing pump 3



OEM option

high precision and easy operation metering pump,lubrication pump, dosing pump 4

Packaging & Shipping

high precision and easy operation metering pump,lubrication pump, dosing pump 5

 Special designed carton and foam plastic cushion

 Professional bundling machine ensure safe delivery to customers directly .



These precise instruments are mainly delivered by Express like DHL FedEx etc.

                     high precision and easy operation metering pump,lubrication pump, dosing pump 6

Accessories

high precision and easy operation metering pump,lubrication pump, dosing pump 7

CE certificate

         high precision and easy operation metering pump,lubrication pump, dosing pump 8
