Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid, medical peristaltic pump
Model Number: BT100J-1A, BT100J-1A
Payment & Shipping Terms
Price: $200.00 - $450.00/sets
Packaging Details: carton
Supply Ability: 1000 Set/Sets per Week
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Mining Industry, Pharmaceutical Industry, Metering |
Horsepower: |
100rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC90V-260V |
Power: |
30w, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Motor Speed: |
1 To 100 Rpm, Reversible |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Mining Industry, Pharmaceutical Industry, Metering |
Horsepower: |
100rpm |
Power Source: |
Electric |
Pressure: |
0.2Mpa, Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC90V-260V |
Power: |
30w, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Motor Speed: |
1 To 100 Rpm, Reversible |
medical peristaltic pump

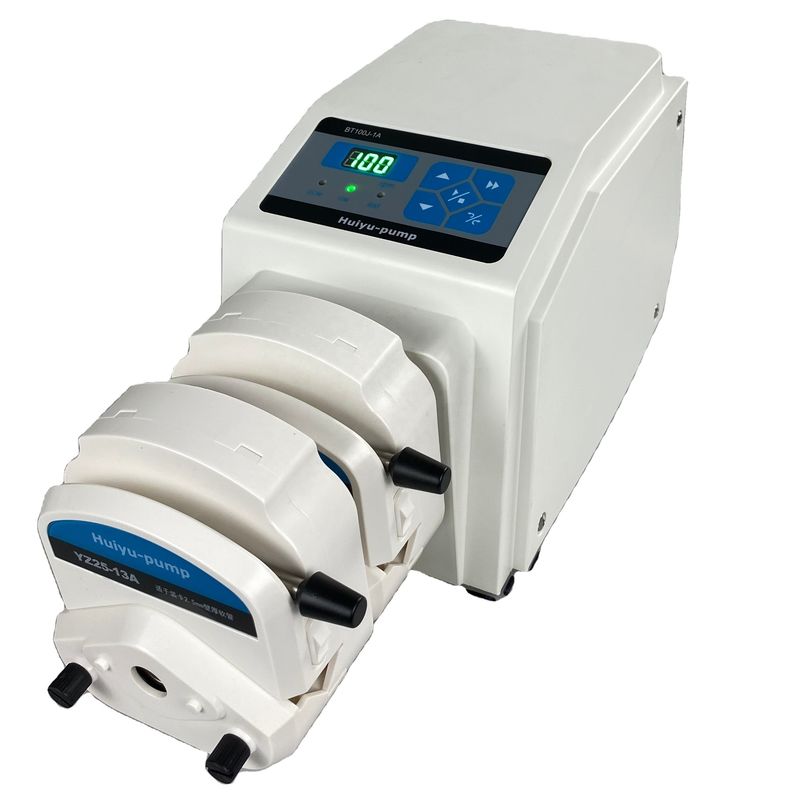

BT100J-1A CE approved peristaltic pump sampler
Technical parameter
Speed: 0.1 to 100 rpm, reversible
Speed precision: 0.1 rpm
Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
Display: 3-digit LED displays current rpm
External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
Communication interface: RS485
Power supply: AC 90V-260 V 50/60 Hz
Power consumption: ≤30 W
Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
Drive weight: 2.5 kg
Dimensions (L×W×H): 243×151×157 (mm)
IP rating: IP 31
Technical Data Sheet
| Pump head | Model | Available tubing | flow rate range (ml/min) |
| YZ15-l3A | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm | 0.07-380ml/min | |
| YZ25-l3A | 15#, 24# wall thickness:2.5mm | 0.2-270ml/min | |
| DG10-lA | wall thickness:0.8-1.0mm ID≤3.17mm A Refers to 6 rollers; B refers to 10 rollers | 0.00025-48ml/min | |
| DG10-1B | 0.0002-32ml/min | ||
| DG10-2A | 0.00025-48ml/min (Single channel) | ||
| DG10-2B | 0.0002-32ml/min (Single channel) | ||
| BZ25-lA | 24# wall thickness:2.5mm | 0.26-260ml/min |
Tubing details
Web:www.avtechnology.co.uk
TRACKING No:GB/1067/4817/13
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
