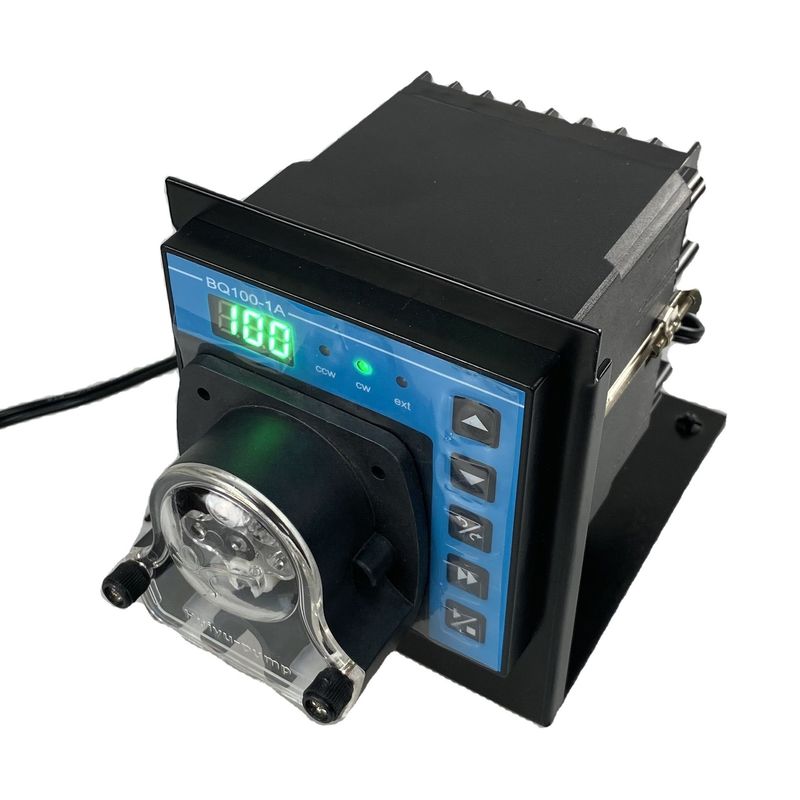

Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu
Model Number: BQ100-1A
Payment & Shipping Terms
Minimum Order Quantity: 5 sets
Price: $140.00/sets >=5 sets
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Mining Industry, Pharmaceutical Industry, Wastewater Treatment, Water Treatment Solutions, Laboratory |
Horsepower: |
100rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC220V±10% |
Power: |
10W |
Type: |
BQ100-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
150ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Mining Industry, Pharmaceutical Industry, Wastewater Treatment, Water Treatment Solutions, Laboratory |
Horsepower: |
100rpm |
Power Source: |
Electric |
Pressure: |
Low Pressure |
Structure: |
Peristaltic Pump |
Voltage: |
AC220V±10% |
Power: |
10W |
Type: |
BQ100-1A |
Motor: |
Stepper Motor |
Max Flow Rate: |
150ml/min |
Certificate: |
CE RoHS |
Communication: |
RS485 |
Speed | 0.1-100rpm | ||||||
Speed resolution | 0.1rpm | ||||||
external control | start/stop,direction and speed control(4-20mA,0-5v,0-10v,0-10kHz external control module optional) | ||||||
Power supply | AC220V±10%，50Hz/60Hz（need 24v adapter） 10w | ||||||
operating temperature | 0~40℃ | ||||||
Relative humidity | ＜80% | ||||||
IP rating | 31 | ||||||
Weight | 0.75kg | ||||||
Dimension | 110mmx96mmx96mm（LXWXH） | ||||||
Drive | Suitable pump head | Channels | Tubing | Flow rate ranges |
BQ100-1A | WX10 | 1 | wall thickness≤1mm， inner diameter≤3.17mm | 0.005-40ml/min |
JY15 Series | 1 | 19#，16#， 25# ，17# | ≤150ml/min |
1.Drive | 2.Pump Head | 3. 2 meters silicon tube | 4. power cord | 5. manual pamphlet | ||||
Warranty:1 year | ||||||||
