Product Details
Place of Origin: Beijing, China
Brand Name: Huiyu fluid, Hot sale popular Beijing Huiyu peristaltic pump
Certification: RoHS
Model Number: CT100-1A, CT100-1A
Payment & Shipping Terms
Price: $200.00 - $450.00/sets
Supply Ability: 1000 Set/Sets per Week
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Water Treatment Solutions, Metering |
Horsepower: |
0.04 |
Power Source: |
Electric |
Pressure: |
0.2mpa, Low Pressure |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
6.4mm |
Voltage: |
220v |
Power: |
40w, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |
Warranty: |
1 Year |
Customized Support: |
OEM |
Application: |
Food And Beverage Industry, Pharmaceutical Industry, Wastewater Treatment, Water Treatment Solutions, Metering |
Horsepower: |
0.04 |
Power Source: |
Electric |
Pressure: |
0.2mpa, Low Pressure |
Structure: |
Peristaltic Pump |
Cable Length: |
1.5m |
Outlet Size: |
6.4mm |
Voltage: |
220v |
Power: |
40w, Electric |
Standard Or Nonstandard: |
Nonstandard |
Theory: |
Reciprocating Pump |

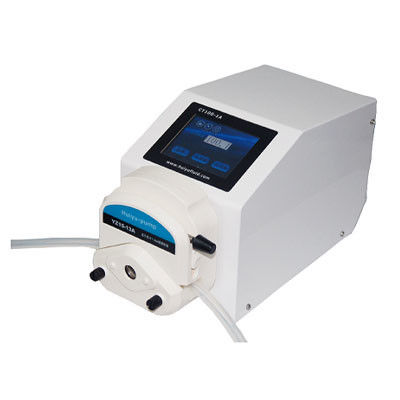

Product description
Metal shell design, buttons and display adopt ergonomic design, and form an angle of 30° with the horizontal
Acid and alkali resistance, corrosion resistance
Displayed in Chinese and English, the speed is increased to 200rpm, and the touch screen control can realize simple sub-assembly, timing and quantitative, and continuous sub-assembly. Flow test and other functions
Dimensions
Technical parameter
Speed range: 0.1-200rpm, resolution 0.1rpm
Timing running time: 1-999 seconds/minute/hour
Intermittent time: 1-999 seconds/minute/hour
Number of cycles: 0-999 times (0 means infinite loop)
External control function: start-stop control, direction control, speed control (0-5V/0-10V, 4-20mA, 0-10kHz optional)
Communication method: RS485 half duplex
Applicable power supply: suitable for a wide range of voltages 90-260V AC, 50/60Hz
Maximum power: 40W
Working environment: ambient temperature 0-40℃, relative humidity <80%
Weight: 2. 6kg
Dimensions: 228 × 133 × 160 (length × width × height) mm
Degree of protection: IP31
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
1 year warranty for all of our pumps
