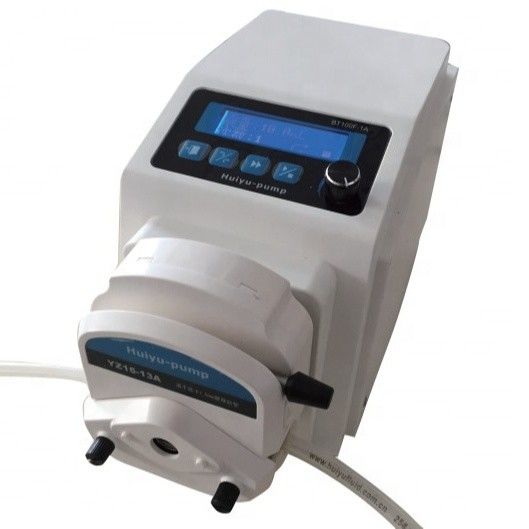

High Precision Metering Dosing Pump Lab Peristaltic Pump

Name: High Precision Metering Dosing Pump Lab Peristaltic Pump
Brand: Huiyuweiy(Beijing) Fluid Equipment Co., Ltd.
SKU: BT100F-1A
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing, China

Brand Name: Huiyu

Model Number: BT100F-1A

Payment & Shipping Terms

Price: $350.00 - $550.00/sets

Supply Ability: 100 Set/Sets per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    high precision peristaltic dosing pump, precision peristaltic dosing pump


Warranty:	1 Year	Customized Support:	OEM
Application:	Food And Beverage Industry, Metering	Horsepower:	100rpm
Power Source:	Electric	Pressure:	0.2Mpa, Low Pressure
Structure:	Reciprocal	Power:	Electric
Standard Or Nonstandard:	Nonstandard	Theory:	Reciprocating Pump
Product:	Nail Polish Bottle Filling Machine	Brand:	Huiyu

Warranty:	1 Year
Customized Support:	OEM
Application:	Food And Beverage Industry, Metering
Horsepower:	100rpm
Power Source:	Electric
Pressure:	0.2Mpa, Low Pressure
Structure:	Reciprocal
Power:	Electric
Standard Or Nonstandard:	Nonstandard
Theory:	Reciprocating Pump
Product:	Nail Polish Bottle Filling Machine
Brand:	Huiyu

Description

High Precision Metering Dosing Pump Lab Peristaltic Pump

nail polish bottle filling machine

Product Description

High Precision Metering Dosing Pump Lab Peristaltic Pump 0

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet

Pump head	model	Available tubing	flow rate range (ml/min)
	YZ15-1A	13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm	0.07-380ml/min
	YZ25-1A	15#,24# wall thickness 2.5mm	0.2-270ml/min
	DG-1A	ID≤3.17mm; wall thickness 0.8-1.0mm; A Refers to 6 rollers; B refers to 10 rollers	0.00025-48ml/min
	DG-1B		0.0002-32ml/min
	DG-2A		0.00025-48ml/min Single channel
	DG-2B		0.0002-32ml/min Single channel
	DG-4A		0.00025-48ml/min Single channel
	DG-4B		0.0002-32ml/min Single channel

High Precision Metering Dosing Pump Lab Peristaltic Pump 1

Operation video link on Youtube for reference:

https://youtu.be/y6sA2m8JKAE

Best selling standard perisaltic pump BT100J+YZ15

Click the photo for technical details

Industrial perisaltic pump BT600J+YZ35

Click the photo for technical details

Laboratory syringe pump LST01-1A

click the photo for technical details

Micro plunger pump

click the photo for technical details

silicone tube

Packaging & Shipping

High Precision Metering Dosing Pump Lab Peristaltic Pump 12

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Suitable pump head

High Precision Metering Dosing Pump Lab Peristaltic Pump 14

OEM option

High Precision Metering Dosing Pump Lab Peristaltic Pump 15

Accessories

High Precision Metering Dosing Pump Lab Peristaltic Pump 16

CE certificate

High Precision Metering Dosing Pump Lab Peristaltic Pump 17
